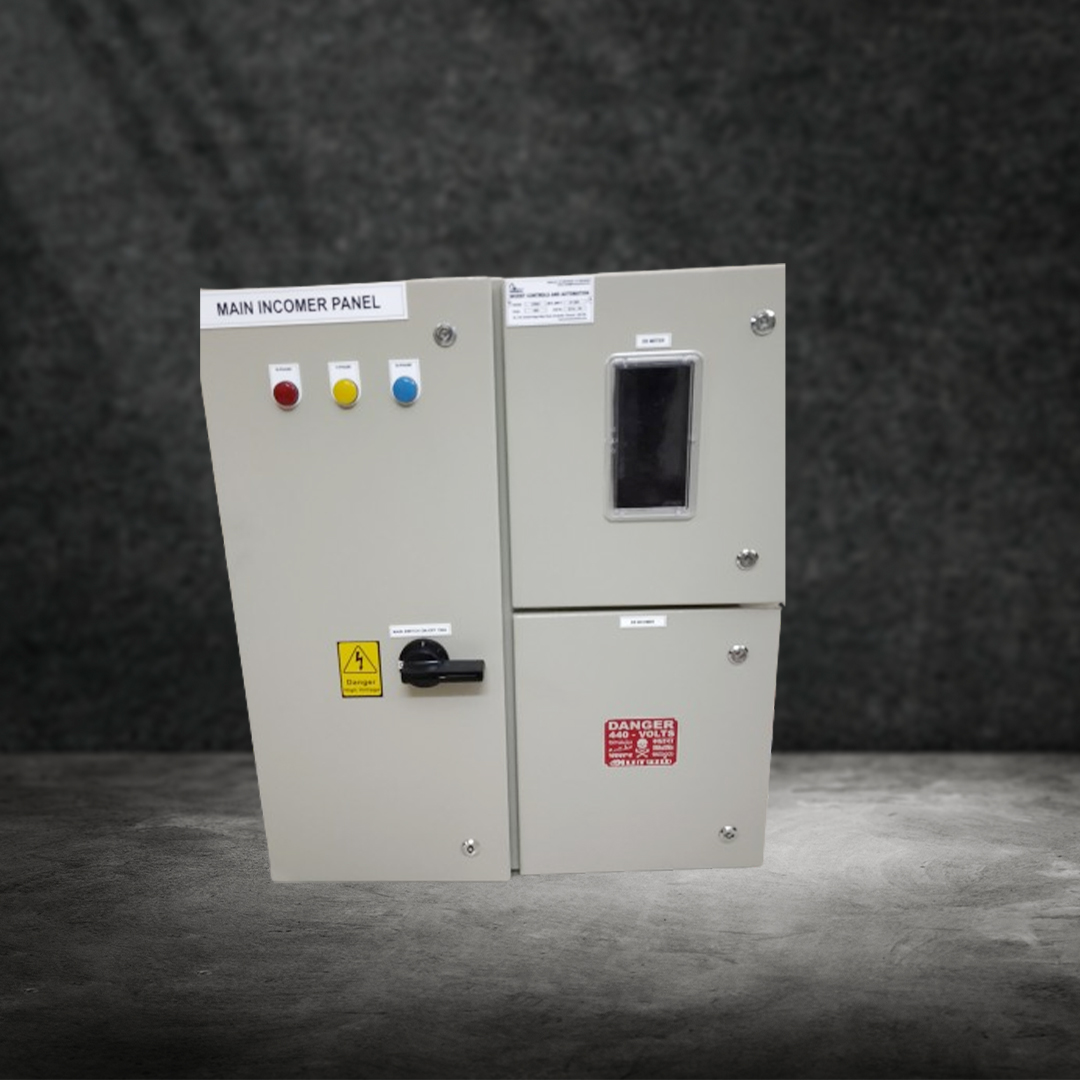

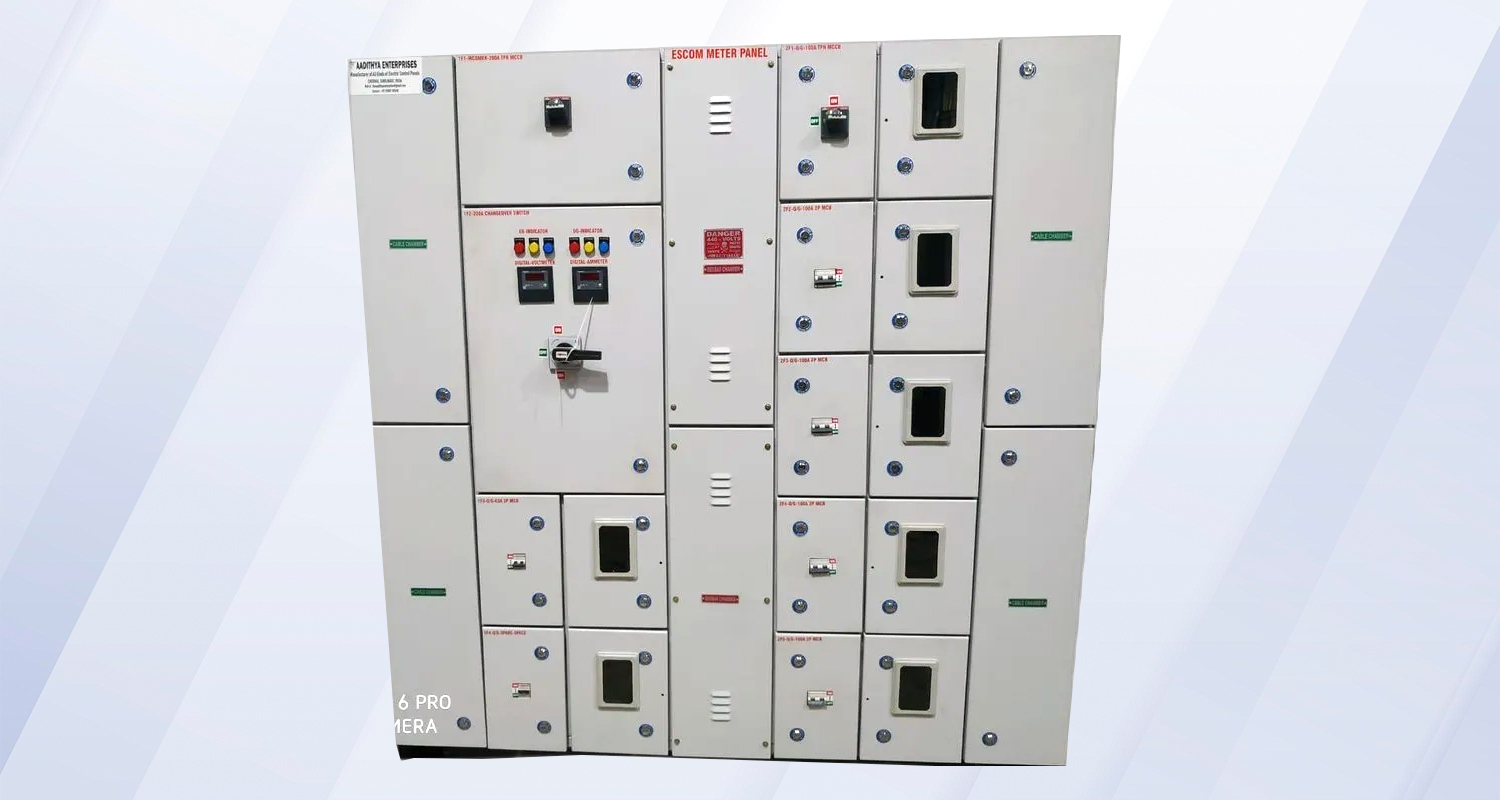

EB (Electricity Board) Meter Panel Boards are specialized panels used to house and protect electricity meters that measure and record the consumption of electrical power supplied by the electricity board to a building or facility. These panels are designed to accommodate one or multiple meters, providing a centralized location for monitoring and managing electrical usage. EB Meter Panel Boards ensure that meters are securely installed and easily accessible for reading and maintenance. They play a crucial role in ensuring accurate billing and energy management by the electricity board, as well as enabling consumers to track and optimize their power consumption. These panels are essential for both residential and commercial properties, facilitating transparent and efficient electricity metering and distribution.
Invent Controls Private Limited offers precision-engineered EB (Electricity Board) Meter Panel Boards designed for accurate and reliable energy metering in residential, commercial, and industrial settings. Our EB Meter Panel Boards provide an efficient solution for monitoring and recording electricity consumption, ensuring compliance with utility regulations and facilitating transparent billing processes. Built with high-quality materials and advanced metering technology, our panels guarantee long-term performance and durability even in demanding environments.
Each EB Meter Panel Board is customizable to meet specific client requirements, offering flexibility in design and configuration. Our panels are equipped with user-friendly interfaces, making them easy to install and maintain, while incorporating comprehensive safety features to protect against electrical faults and tampering. Invent Controls prioritizes accuracy and reliability, delivering metering solutions that enhance energy management and operational efficiency. Trust Invent Controls Private Limited for EB Meter Panel Boards that combine innovation, quality, and precision to meet your energy metering needs
Special Features of Invent Controls Private Limited EB Meter Panel Boards
Invent Controls Private Limited offers state-of-the-art EB Meter Panel Boards, designed to provide accurate and reliable energy metering solutions for various applications. Here are the key features:
High Precision Metering: Our EB meter panels feature high-precision meters that provide accurate readings of energy consumption, ensuring reliable data for billing and energy management.
Durable Construction: Built with high-quality materials, our EB meter panels are designed to withstand harsh environmental conditions, ensuring long-lasting performance and durability.
Safety Features: Safety is paramount in our design. Our EB meter panels include protective features such as overload protection, short circuit protection, and tamper-proof enclosures to ensure the safety of the system and personnel.
User-friendly Interface: Featuring an intuitive interface, our meter panels are easy to read and operate. Clear displays and controls simplify the monitoring and management of energy usage.
Customizable Configurations: We offer customizable configurations to meet specific client requirements. Whether you need single-phase or three-phase metering, our panels can be tailored to suit your needs.
Real-time Monitoring: Equipped with advanced monitoring systems, our EB meter panels provide real-time tracking of energy consumption and electrical parameters, enabling proactive energy management and cost savings.
Compact Design: Designed to optimize space, our EB meter panels offer a compact footprint without compromising on functionality. This is ideal for installations where space is limited.
Easy Installation and Maintenance: Our meter panels are designed for easy installation and maintenance. Accessible components and clear labeling simplify setup and reduce downtime for maintenance.
Compliance and Certification: Our EB meter panels comply with international standards and certifications, ensuring high quality and adherence to safety and performance regulations.
Comprehensive Support Services:b> We provide comprehensive support services, including design consultation, installation, commissioning, and ongoing technical support. Our team of experts is dedicated to ensuring the optimal performance and reliability of your EB meter panels.
| General Specifications | |
|---|---|
| Manufacturer | Invent Controls Private Limited |
| Model | IC-EBMP Series |
| Type | EB Meter Panel Boards |
| Application | Power metering and monitoring for industrial, commercial, and residential applications |
| Electrical Specifications | |
|---|---|
| Rated Voltage | 415V AC / 690V AC (customizable) |
| Frequency | 50/60 Hz |
| Rated Current | Up to 4000A |
| Cable Entry | Top, bottom, or side entry options available |
| Busbar Systemr | Copper or Aluminum, rated for high current applications |
| Mechanical Specifications | |
|---|---|
| Enclosure Material | Mild Steel / Stainless Steel |
| Powder Coat | Epoxy polyester powder coating, RAL color options available |
| Panel Thickness | 2mm - 3mm (depending on size and application) |
| Mounting Type | Wall-mounted or floor-standing |
| Weight | Depending on configuration (typically 50 kg and above) |
| Ingress Protection (IP | IP54 / IP65 (depending on model) |
| Short Circuit Ratings | |
|---|---|
| Busbar System | Copper or Aluminum busbars, short circuit withstand capacity up to 50 kA |
| Switchgears | MCCBs (Molded Case Circuit Breakers), ACBs (Air Circuit Breakers) with short circuit ratings up to 50 kA |
| Control and Operation | |
|---|---|
| Components | Energy meters (e.g., Schneider Electric EM6436), MCCBs, MCBs (Miniature Circuit Breakers), RCDs (Residual Current Devices), and Isolators |
| Number of Meters | Configurable based on project requirements (e.g., 1 to 6 meters) |
| Incomer Ratings | Configurable based on project requirements (e.g., 100A, 200A, 400A) |
| Additional Options | ATS (Automatic Transfer Switch) and AMF (Automatic Mains Failure) configurations available |
| Monitoring | Real-time monitoring of electrical parameters |
| Alarms | Audible and visual alarms for overcurrent and short circuit protection |
| Safety and Compliance | |
|---|---|
| Certifications | CE, UL, IEC 61439-1, IEC 61439-2 |
| Standards | EN 60439-1, EN 60439-3 |
| Additional Features | |
|---|---|
| HMI Interface | LCD display for status and parameter monitoring |
| Remote Monitoring | Connectivity options for remote monitoring and control |
| Customization | Tailored configurations available to meet specific project requirements |
| Modularity | Segregated compartments for power and control sections |
| Accessories and Options | |
|---|---|
| Modbus, Ethernet/IP for integration with building management systems | |
| Temperature and humidity sensors for environmental control |
For detailed specifications tailored to your project needs or further inquiries, please contact our technical support team or visit our contact page
Invent Controls Private Limited specializes in advanced EB (Electricity Board) Meter Panel Boards, offering reliable solutions for energy monitoring and management across diverse industrial applications. Explore how our EB Meter Panel Boards can benefit your industry:
Efficient energy management is critical in manufacturing environments. Invent Controls’ EB Meter Panel Boards provide:
Commercial facilities require precise energy monitoring for effective cost management and sustainability. Our EB Meter Panel Boards offer:
In healthcare facilities, monitoring energy usage is crucial for operational efficiency and patient care. Our EB Meter Panel Boards deliver:
Data centers require accurate energy monitoring to optimize operations and reduce costs. Invent Controls’ EB Meter Panel Boards provide:
Industrial facilities benefit from precise energy monitoring to enhance productivity and reduce downtime. Our EB Meter Panel Boards offer:
Invent Controls Private Limited is committed to delivering innovative EB Meter Panel Board solutions that optimize energy management, improve operational efficiency, and support sustainability goals across various industries. Contact us today to discover how our EB Meter Panel Boards can streamline energy monitoring for your business.
