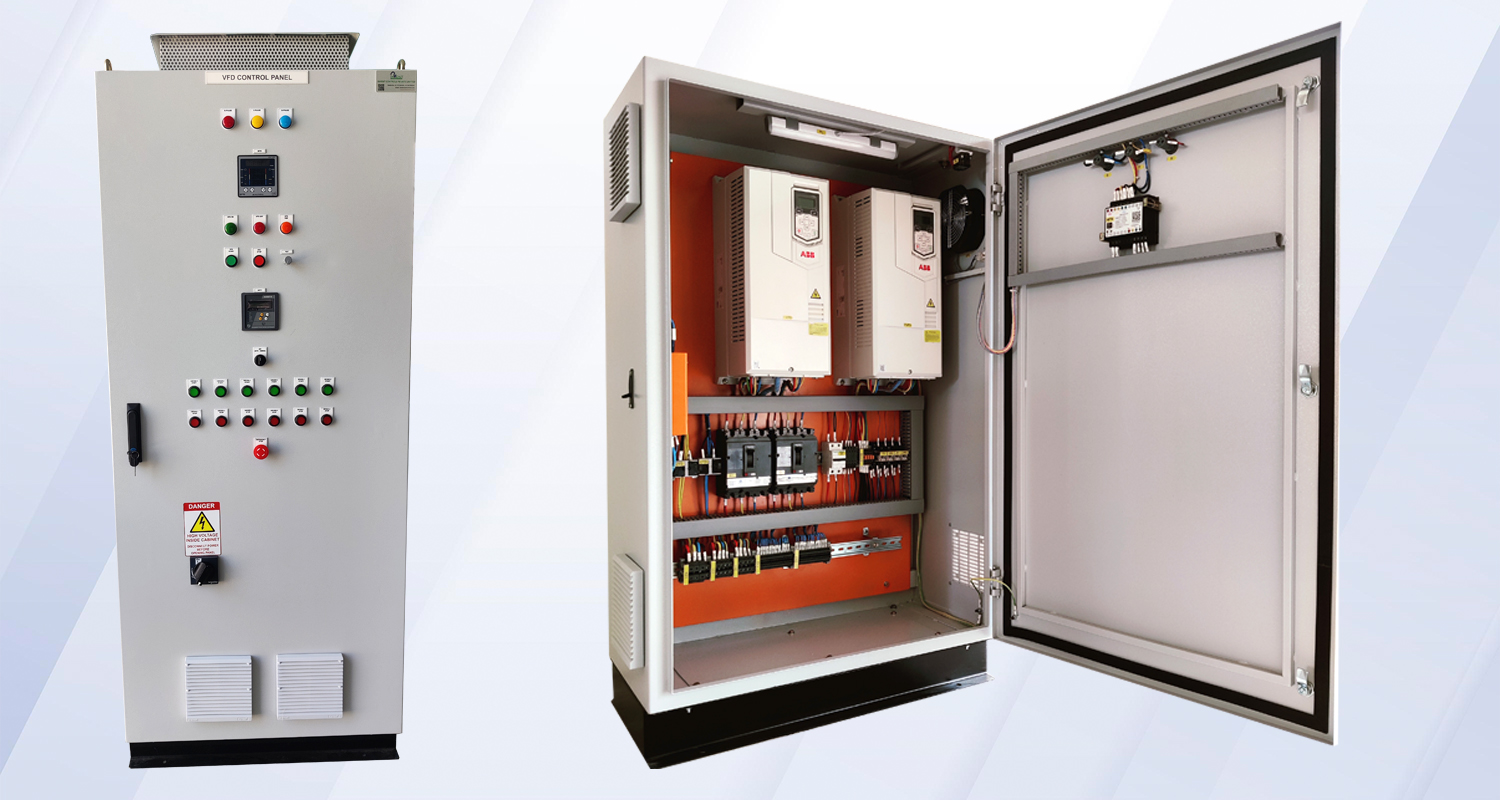

VFD (Variable Frequency Drive) control panels are crucial systems used to regulate the speed and torque of electric motors in various industrial applications. These panels incorporate VFD units, which adjust the frequency and voltage supplied to the motor, enabling precise control over its performance. This not only enhances energy efficiency but also extends the lifespan of the motor by reducing mechanical stress. VFD control panels are commonly used in applications such as HVAC systems, conveyors, pumps, and fans, where variable motor speed is essential. They offer benefits like improved process control, reduced energy consumption, and lower maintenance costs, making them vital for modern industrial automation and energy management.
Invent Controls Private Limited specializes in designing and manufacturing VFD (Variable Frequency Drive) control panels that optimize energy efficiency and enhance operational control across various industrial applications. Our VFD control panels are crafted with advanced technology to deliver precise speed and torque regulation, allowing for seamless integration with existing machinery and systems. Each panel is engineered for reliability and durability, capable of withstanding rigorous industrial environments while maintaining consistent performance.
Our VFD control panels are tailored to meet specific client requirements, offering customizable solutions that cater to diverse industries including manufacturing, HVAC, water treatment, and more. Designed with user-friendly interfaces, our panels ensure ease of operation and minimal downtime, supported by comprehensive safety features to protect equipment and personnel. Invent Controls combines years of expertise with a commitment to innovation, ensuring that our VFD control panels not only meet but exceed industry standards for efficiency, reliability, and performance. Trust Invent Controls Private Limited for cutting-edge VFD solutions that optimize your industrial operations.
Our VFD Control Panels are engineered to deliver superior performance and efficiency in motor control applications. Here are the key special features:
Precise Motor Control: Our VFD panels provide precise control over motor speed and torque, optimizing performance for various industrial applications.
Energy Savings: By adjusting motor speed according to demand, our VFD panels help reduce energy consumption and operating costs, contributing to sustainable manufacturing practices.
Flexible Operation: Designed for versatility, our VFD panels support a wide range of motor types and sizes, offering flexibility in application across different industries.
Integrated Protection Features: Equipped with comprehensive protection mechanisms, including overload protection, short circuit protection, and over-temperature protection, ensuring reliable operation and extended equipment lifespan.
User-Friendly Interface: Featuring intuitive interfaces and advanced monitoring capabilities, our VFD panels simplify operation and maintenance tasks, enhancing overall efficiency and productivity.
Customizable Solutions: We offer customizable VFD control panel solutions to meet specific operational requirements, accommodating unique application needs and integration with existing systems.
Remote Monitoring and Control: Our VFD panels support remote monitoring and control capabilities, enabling operators to monitor performance metrics and make adjustments from a centralized location.
Robust and Durable Design: Built with high-quality materials and robust construction, our VFD panels are designed to withstand harsh industrial environments, ensuring reliable operation under demanding conditions.
Comprehensive Support Services: We provide comprehensive support services, including installation, commissioning, and ongoing maintenance, backed by our team of skilled engineers and technicians.
For more information on our VFD Control Panels and how they can optimize motor control in your operations, please contact us or visit our contact page.
| General Specifications | |
|---|---|
| Manufacturer | Invent Controls Private Limited |
| Model | IC-VFD Series |
| Type | VFD Control Panel |
| Application | Motor speed control, energy savings, industrial automation |
| Electrical Specifications | |
|---|---|
| Input Voltage | 3-phase, 380V AC / 415V AC / 480V AC (customizable) |
| Output Voltage | Variable frequency and voltage to match motor requirements |
| Frequency | 50/60 Hz |
| Power Range | 1 kW to 500 kW (depending on model) |
| Efficiency | Up to 98% |
| Power Factor | > 0.95 |
| Cable Entry | Bottom, top, or side entry options available |
| VFD Specifications | |
|---|---|
| Control Method | V/F control, Vector control |
| Acceleration/Deceleration Time | Adjustable |
| Protection | Overcurrent, Overvoltage, Undervoltage, Overtemperature |
| Programming | Parameter setting via keypad or software |
| Interfaces | Digital inputs/outputs, Analog inputs/outputs, RS-485, Ethernet |
| Environmental Specifications | |
|---|---|
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +60°C |
| Humidity | 5% to 95% non-condensing |
| Mechanical Specifications | |
|---|---|
| Enclosure Material | Mild Steel / Stainless Steel |
| Dimensions | Customizable (standard sizes available) |
| Mounting Type | Wall-mounted / Floor-standing |
| Weight | Depending on configuration (typically 10-100kg) |
| Ingress Protection (IP) | IP54 / IP65 (depending on model) |
| Safety and Compliance | |
|---|---|
| Certifications | CE, UL, RoHS |
| Standards | IEC 61800-5-1, EN 60204-1 |
| Additional Features | |
|---|---|
| HMI Interface | Touchscreen / Keypad for parameter adjustment |
| Remote Monitoring | Available via web interface or dedicated software |
| Fault Diagnosis | Real-time fault diagnostics and alarm notification |
| Energy Monitoring | Integrated energy monitoring capabilities |
| Customization | Tailored configurations available upon request |
| Accessories and Options | |
|---|---|
| Input Filters | EMC filters for noise reduction |
| Output Chokes | Smooths output waveform, reduces motor noise |
| Braking Units | Dynamic braking for rapid stopping |
| Communication Modules | Profibus, Modbus TCP/IP, CANopen, etc. |
| Programming Software | Parameter setting software included |
For detailed specifications specific to your application needs or further inquiries, please contact our technical support team or visit our contact page
Invent Controls Private Limited offers advanced VFD (Variable Frequency Drive) control panels designed to optimize performance, enhance energy efficiency, and ensure precise control across various industries. Discover how our VFD control panels can cater to your industry-specific needs:
In manufacturing, efficiency and precision are crucial. Invent Controls’ VFD control panels provide:
Efficient HVAC systems are essential for comfort and energy savings. Our VFD control panels offer:
Water and wastewater processes require reliable and efficient control solutions. Invent Controls’ VFD control panels:
In the oil and gas industry, rugged and reliable control systems are vital. Our VFD control panels offer:
In renewable energy applications, maximizing energy capture and efficiency is paramount. Invent Controls’ VFD control panels provide:
Mining operations require robust and durable control solutions. Our VFD control panels offer:
In the food processing industry, hygiene and efficiency are critical. Our VFD control panels provide:
Invent Controls Private Limited is committed to delivering innovative VFD control panel solutions that enhance efficiency, reduce costs, and improve operational performance across diverse industries. Contact us today to explore how our VFD control panels can benefit your business.
