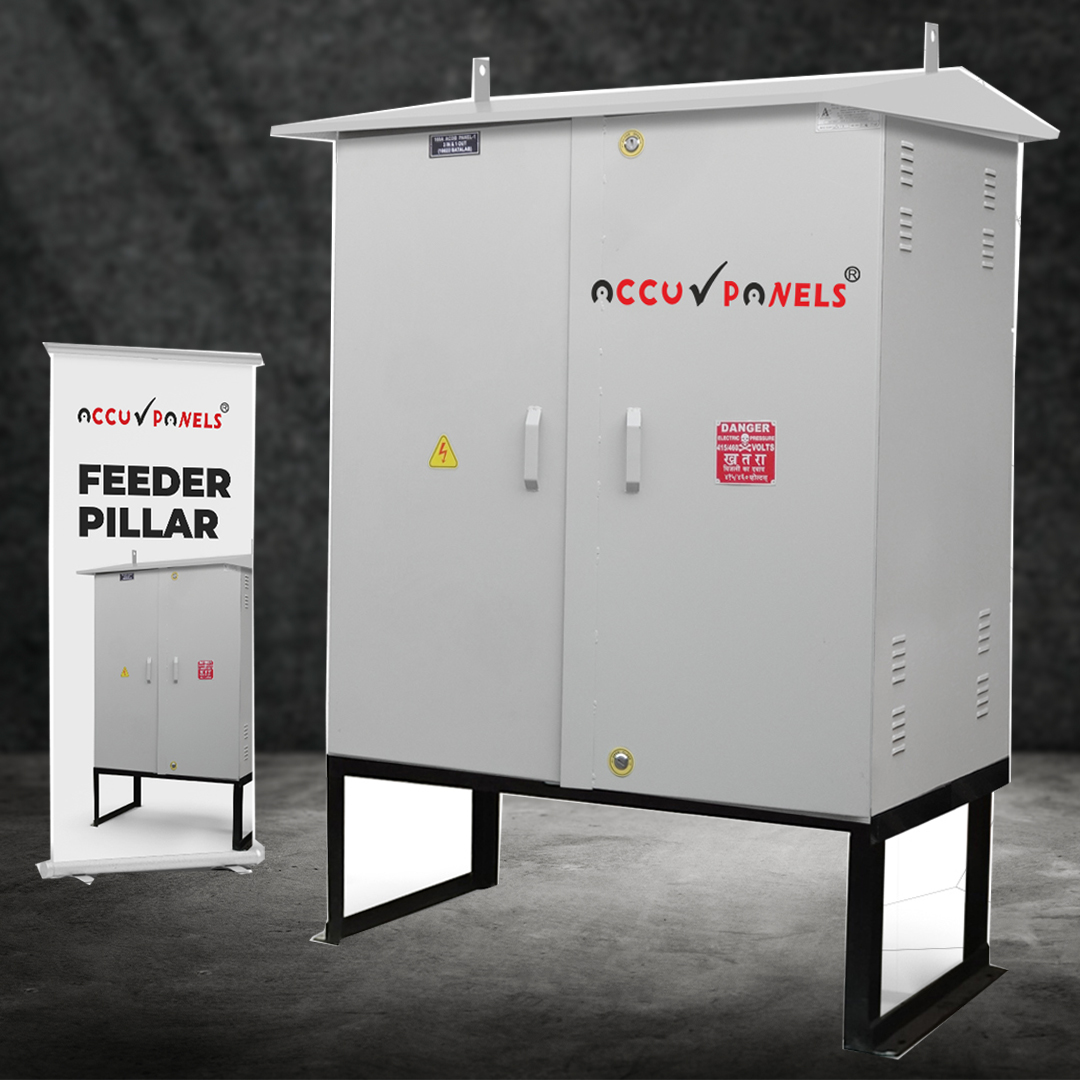

Feeder Pillar Panel Boards

What is Feeder Pillar Panel Boards?

Feeder Pillar Panel Boards are essential components in electrical distribution systems, providing a centralized point for the control and protection of electrical circuits. These panels are typically installed outdoors and are designed to withstand harsh environmental conditions, featuring robust enclosures with high IP ratings for dust and water protection. Feeder pillar panels are crucial in distributing power from the main supply to various sub-circuits, ensuring reliable and efficient power distribution in residential, commercial, and industrial applications. They are equipped with circuit breakers, fuses, and other protective devices to safeguard electrical systems from overloads, short circuits, and other faults, enhancing the safety and reliability of the electrical infrastructure.

Feeder Pillar Panel Boards @ Invent

Feeder Pillar Panel Boards from Invent Controls Private Limited are designed to provide robust and reliable solutions for electrical distribution. These panels are essential for managing and protecting the distribution of electrical power in various industrial, commercial, and residential applications. Our Feeder Pillar Panels are engineered with precision, incorporating the latest technology to ensure efficient and safe operation. They feature durable construction, high-quality components, and are customizable to meet specific client requirements. The panels are equipped with advanced safety mechanisms to prevent electrical faults, ensuring continuous and uninterrupted power supply.

Invent Controls' Feeder Pillar Panels are built to withstand harsh environmental conditions, offering exceptional protection against dust, water, and other external elements. The panels are IP-rated, ensuring a high degree of ingress protection, and are powder-coated to enhance durability and resistance to corrosion. Our panels come with flexible cable entry options, making installation easy and convenient. With a focus on quality and reliability, Invent Controls' Feeder Pillar Panel Boards are the ideal choice for efficient power distribution and management in a wide range of settings.

Special Features

Special Features of Invent Controls Feeder Pillar Panel Boards

1. Robust Construction and Durability

• Heavy-Duty Enclosure: Strong, weatherproof enclosure suitable for outdoor installations.
• Corrosion Resistance: Galvanized steel or aluminum construction with a durable powder coat finish for long-term protection against corrosion.
• IP55/IP65 Rating: Dust-tight and water-resistant enclosures, ensuring reliability in harsh environments.

2. Safety and Protection

• Fault Protection: Comprehensive protection against short circuits, overloads, and earth faults with advanced circuit breakers and residual current devices (RCDs).
• Surge Protection: Built-in surge protection devices (SPDs) to safeguard connected equipment from transient voltage spikes.
• Lockable Doors: Secure locking mechanisms to prevent unauthorized access and ensure safety.

3. Ease of Installation and Maintenance

• Pre-assembled and Pre-wired: Ready-to-install units, reducing installation time and costs.
• Modular Design: Flexibility to customize configurations based on specific project requirements.
• Easy Access: Hinged doors with quick-release hinges for convenient access during installation and maintenance.

4. Monitoring and Control

• Remote Monitoring Capability: Integration with IoT technology for remote monitoring and management of electrical parameters.
• Metering Options: Provision for energy meters and monitoring devices to track consumption and performance.
• User-Friendly Interface: Clear labeling and intuitive interfaces for easy operation and maintenance.

5. Versatility and Adaptability

• Customizable Configurations: Tailored to accommodate various distribution layouts and equipment requirements.
• Flexible Cable Entry: Multiple gland plates for easy cable entry and management.
• Scalable Design: Expandable to accommodate future growth and additional loads.

6. Environmental Considerations

• UV Resistant Coating: Outdoor-rated powder coat finish for UV protection and enhanced durability.
• Temperature Management: Ventilation options to regulate internal temperature and prevent overheating.
• Environmental Compliance: Designed in compliance with environmental regulations and standards.

7. Quality Assurance and Compliance

• International Standards: Conformance to international standards such as IEC, BS, and EN for safety and performance.
• Quality Control: Rigorous testing and inspection procedures to ensure reliability and longevity.
• Warranty and Support: Comprehensive warranty coverage and responsive after-sales support.

These special features ensure that Invent Controls Feeder Pillar Panel Boards deliver robust performance, safety, and reliability in electrical distribution applications, making them ideal for industrial, commercial, and infrastructure projects.

Feeder Pillar Panel Boards are essential components in electrical distribution systems, providing a centralized point for controlling and distributing electrical power. These panels are designed to accommodate various electrical components, ensuring reliable power distribution for industrial, commercial, and residential applications.

General Overview

Electrical Specifications
Rated Voltage	Up to 415V AC, 50/60 Hz
Rated Current	Up to 4000A
Short Circuit Rating	50kA for 1 second
Busbar Material	Electrolytic grade copper/aluminum
Busbar Configuration	Three-phase and neutral with Earth
Insulation Level	1000V AC
Cable Entry	Top/bottom entry as per customer requirements
Internal Wiring	PVC insulated copper cables
Protection Class	IP55 (Outdoor), IP65 (Indoor)

Mechanical Specifications
Enclosure Material	CRCA (Cold Rolled Close Annealed) sheet steel
Panel Thickness	Doors: 2.0 mm Side Panels: 1.6 mm Base: 3.0 mm
Finish	Powder-coated with epoxy polyester
Color	RAL 7032 (or as specified by the customer)
Mounting	Floor standing with mounting bolts
Dimensions	Customizable as per requirement

Components
Circuit Breakers	MCCBs (Molded Case Circuit Breakers) / ACBs (Air Circuit Breakers)
Fuse Units	HRC (High Rupturing Capacity) fuse units
Switches	Isolators and changeover switches
Indicators	LED type phase indication lamps
Meters	Digital multifunction meters for voltage, current, power, and energy
Surge Protection Devices	SPD for transient voltage protection
Terminals	Heavy-duty terminal blocks

Environmental Conditions
Ambient Temperature	-5°C to +50°C
Relative Humidity	Up to 95% non-condensing
Installation Altitude	Up to 2000 meters above sea level without deratingg

Standards and Compliance
Design and Construction	IEC 61439-1 & 2
Degree of Protection	IEC 60529
Short Circuit Rating	IEC 60947-2
Type Tests	Temperature rise, short circuit withstand, dielectric strength, and degree of protection tests

Safety Features
Interlocks	Mechanical and electrical interlocks to prevent unauthorized access
Earthing	Proper earthing for safety and protection against electrical faults
Lockable Doors	Provision for padlocking to ensure security
Gland Plates	Removable gland plates for easy cable termination

Labelling & Warning Labels
Engraving Name Plates	Durable, engraved nameplates for clear component identification and panel labeling.
Warning Labels	Prominently displayed warning labels for high voltage, arc flash hazards, and operational cautions as per relevant safety standards.

Additional Features
Anti-condensation Heaters	To prevent moisture accumulation
Ventilation	Louvers with filters for proper air circulation
Cable Management	Cable trays and cleats for organized cable routing
Documentation	Comprehensive user manual with wiring diagrams and installation instructions

Customization Options
Enclosure Material	Stainless steel for corrosive environments
Finish	Custom colors and finishes
Components	Specific brands and types of electrical components as per customer preference
Control Options	Integration with SCADA systems for remote monitoring and control

These specifications ensure that the Feeder Pillar Panel Boards by Invent Controls are robust, reliable, and suitable for a wide range of electrical distribution applications, providing optimal performance and safety.

Industry Applications of Feeder Pillar Panel Boards

Feeder Pillar Panel Boards are critical components in electrical distribution networks, providing a safe and controlled means of distributing power to various applications. Here are some industry-specific applications where Feeder Pillar Panel Boards from Invent Controls are utilized:

1. Industrial Facilities:

Application: Feeding power to heavy machinery, production lines, and industrial processes.

Benefits: Ensures reliable and uninterrupted power supply, enhances operational efficiency, and supports automation.

Key Features: High fault tolerance, robust construction, integration with SCADA systems, and remote monitoring capabilities.

2. Commercial Buildings:

Application: Distributing power to office complexes, shopping malls, and retail outlets.

Benefits: Enables efficient energy management, reduces downtime, and supports tenant needs.

Key Features: Modular design, ease of expansion, energy metering options, and compliance with building codes.

3. Public Infrastructure:

Application: Powering street lighting, traffic signals, and public transportation systems.

Benefits: Enhances public safety, reduces energy consumption, and supports smart city initiatives.

Key Features: Weather-resistant enclosure, tamper-proof design, remote monitoring, and compatibility with IoT systems.

4. Transportation Sector:

Application: Supporting railway electrification, airport infrastructure, and port facilities.

Benefits: Ensures reliable power for critical operations, reduces carbon footprint, and supports sustainable transportation.

Key Features: Shock-resistant design, surge protection, backup power options, and compliance with transportation safety standards.

5. Telecommunication Networks:

Application: Powering telecom towers, data centers, and network equipment.

Benefits: Ensures uninterrupted communication services, supports network expansion, and reduces operational costs.

Key Features: Scalable design, battery backup systems, remote monitoring, and integration with telecom infrastructure.

6. Healthcare Facilities:

Application: Providing power to hospitals, clinics, and medical research centers.

Benefits: Ensures continuous operation of critical medical equipment, supports patient care, and complies with healthcare regulations.

Key Features: Medical-grade insulation, fault detection systems, redundancy options, and compliance with safety standards.

7. Educational Institutions:

Application: Distributing power within schools, universities, and research laboratories.

Benefits: Supports educational activities, enhances campus safety, and reduces energy costs.

Key Features: User-friendly interface, energy metering capabilities, integration with educational programs, and sustainable campus initiatives.

8. Residential Developments:

Application: Feeding power to residential complexes, gated communities, and housing societies.

Benefits: Ensures reliable electricity supply to residents, supports energy-efficient housing, and enhances property value.

Key Features: Compact footprint, customizable configurations, smart metering options, and ease of maintenance.

Feeder Pillar Panel Boards play a crucial role across various industries by providing efficient and safe electrical distribution solutions. They are designed to meet specific industry needs, ensuring reliability, safety, and compliance with regulatory standards.

...
