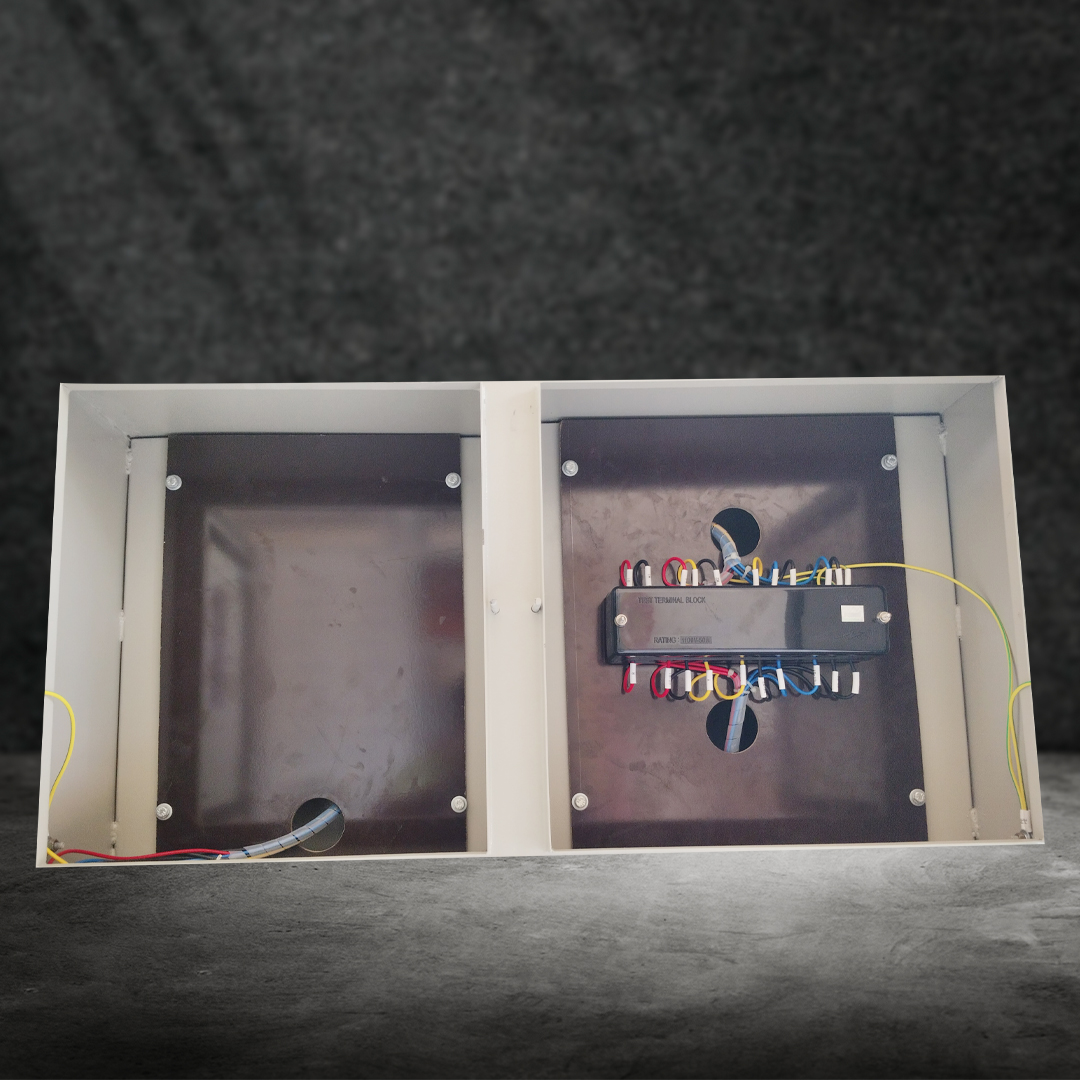

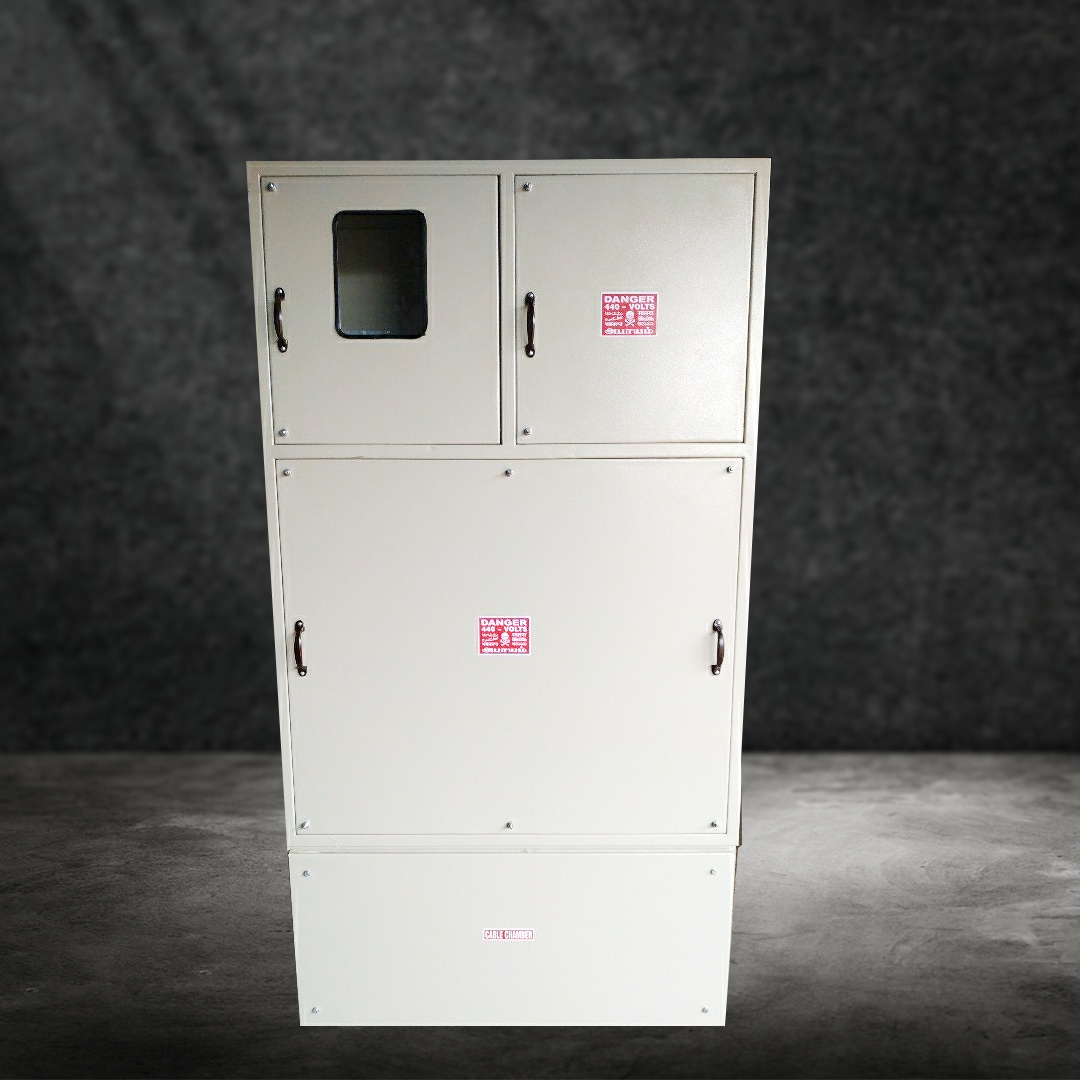

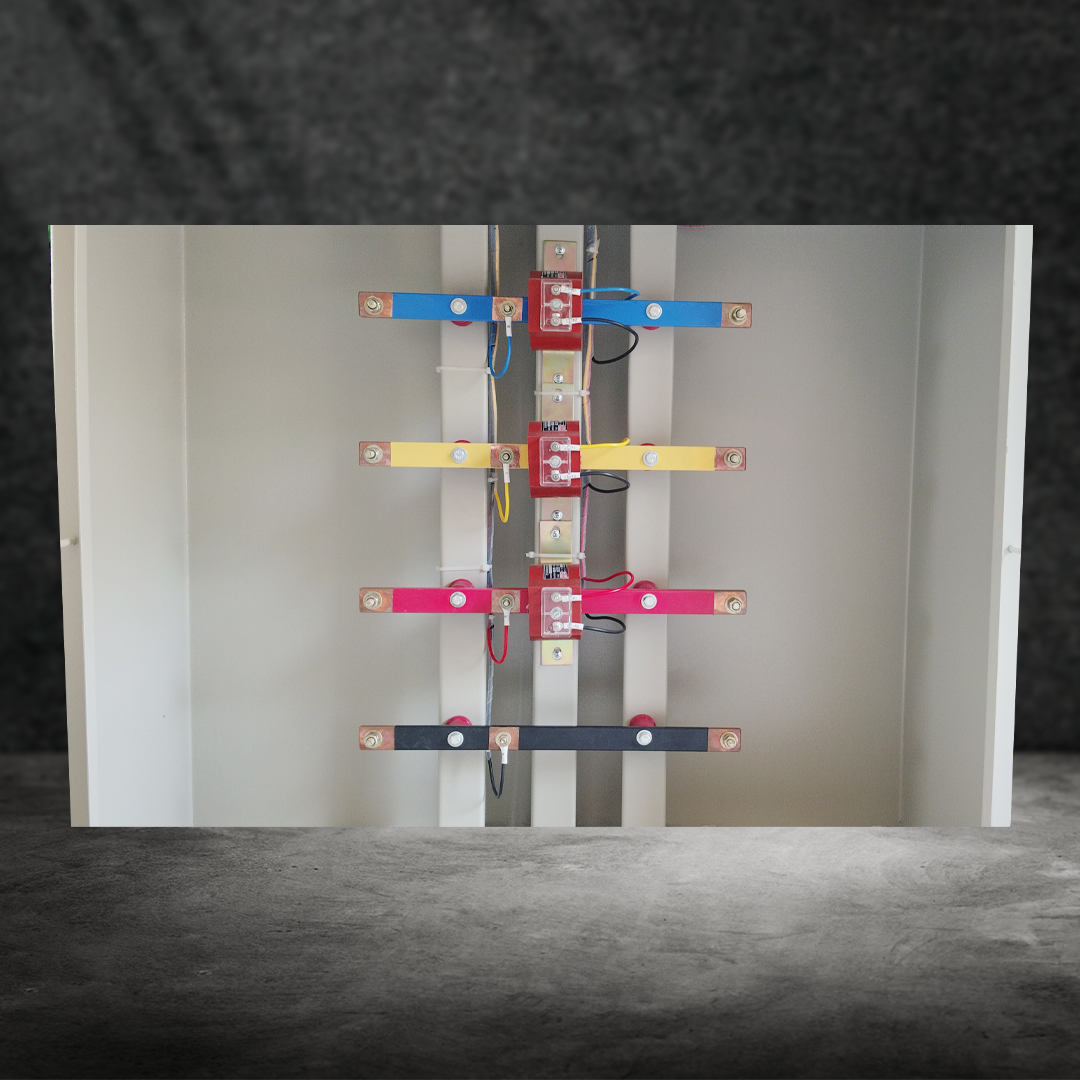

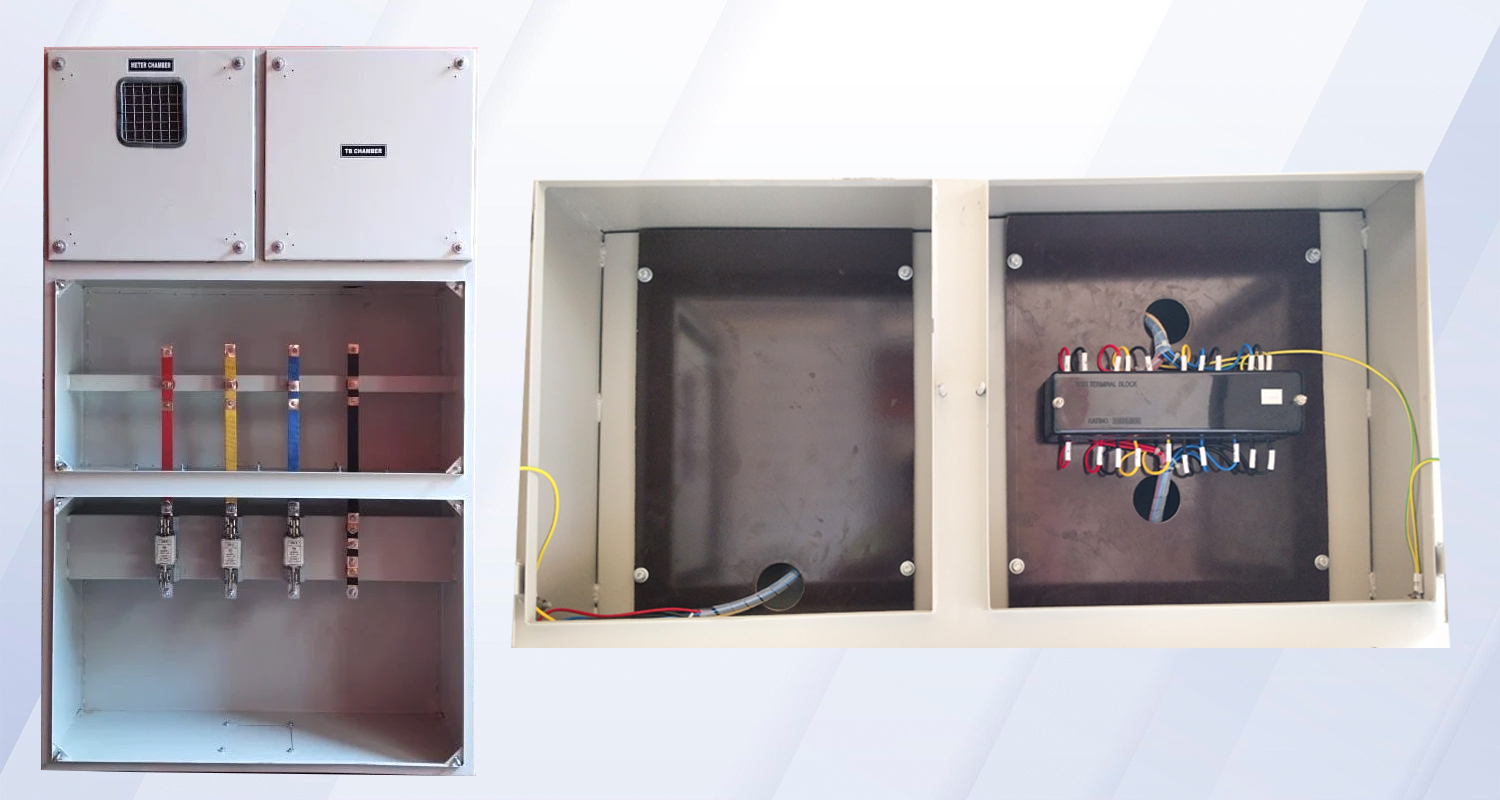

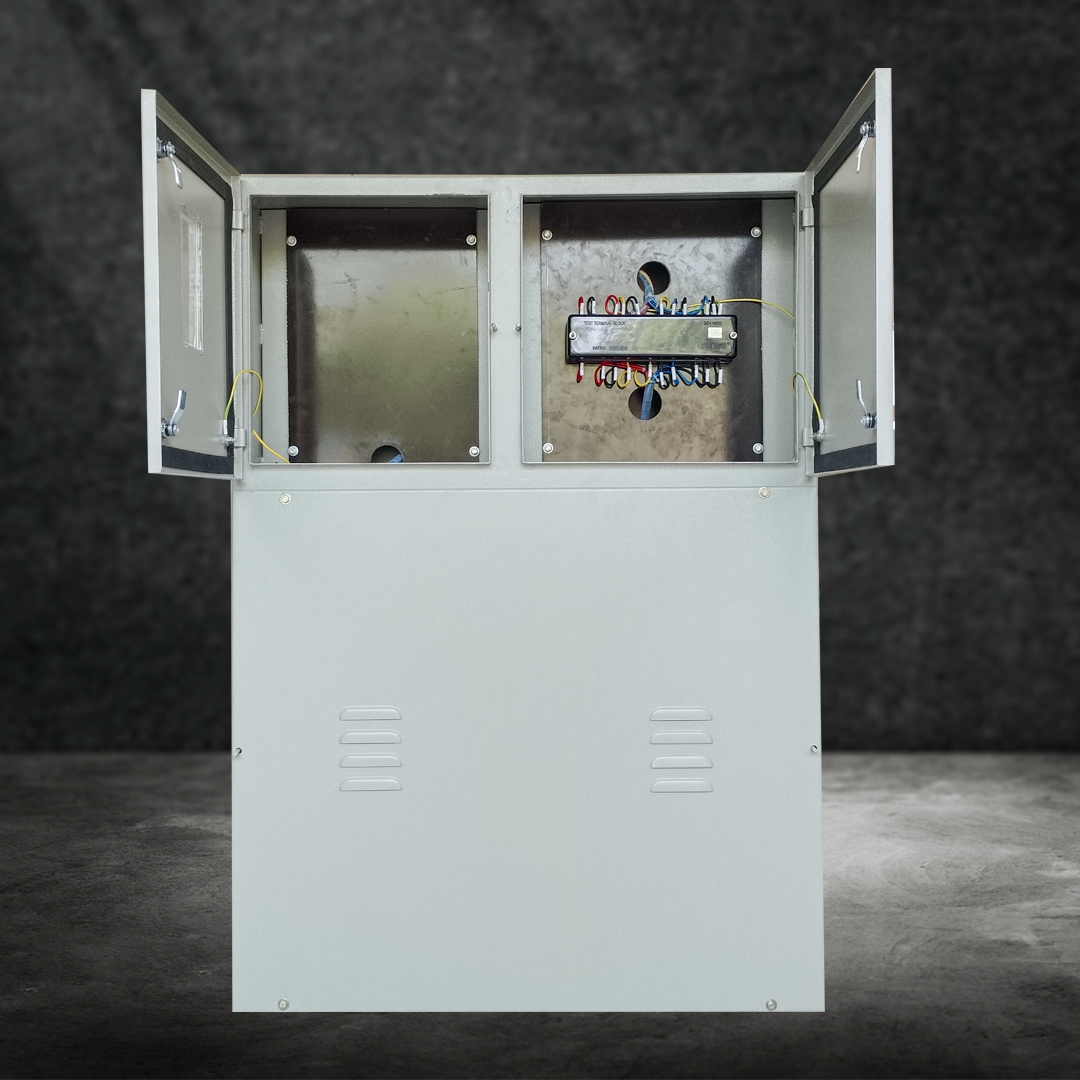

T CT (Low Tension Current Transformer) Meter Panel Boards are specialized units used for metering and monitoring electrical energy consumption in low voltage distribution systems. These panels integrate current transformers to step down currents for measurement, ensuring accurate recording of electricity usage. LT CT Meter Panel Boards typically house meters, CTs, and associated wiring in a secure and organized manner, providing a central point for monitoring electricity consumption in residential, commercial, and industrial settings. They facilitate efficient energy management, billing accuracy, and compliance with regulatory requirements by enabling precise measurement and monitoring of electrical usage patterns. These panels are crucial for utilities and consumers alike, enabling effective management of electricity resources and promoting energy efficiency.
Invent Controls Private Limited specializes in LT (Low Tension) CT (Current Transformer) Meter Panel Boards designed for precise and efficient electricity metering across various industrial, commercial, and residential applications. Our LT CT Meter Panel Boards are engineered to accurately measure and monitor electrical parameters, including voltage, current, and power consumption. These panels play a crucial role in facilitating effective energy management, ensuring compliance with utility standards, and enabling transparent billing processes.
Each LT CT Meter Panel Board from Invent Controls is crafted with high-quality materials and advanced metering technology, ensuring durability, reliability, and long-term performance. We offer customizable solutions tailored to meet specific client requirements, with options for different metering configurations and capacities. Our panels are equipped with intuitive interfaces for easy installation and maintenance, along with comprehensive safety features to protect against electrical hazards. Invent Controls combines technical expertise with a commitment to innovation, delivering LT CT Meter Panel Boards that optimize energy efficiency and support sustainable practices. Trust us for reliable metering solutions that meet the highest standards of accuracy and reliability.
Special Features of Invent Controls Private Limited LT CT Meter Panel Boards
Invent Controls Private Limited presents high-quality LT CT Meter Panel Boards designed to ensure efficient and safe power distribution across various applications. Here are the key features:
These special features make Invent Controls' LT CT Meter Panel Boards an ideal choice for accurate energy measurement, robust performance, and advanced monitoring in various industrial and commercial applications.
| General Specifications | |
|---|---|
| Manufacturer | Invent Controls Private Limited |
| Model | IC-LT CT Meter Panel Boards |
| Type | LT CT Meter Panel Boards |
| Application | Power distribution for industrial, commercial, and residential applications |
| Electrical Specifications | |
|---|---|
| Rated Voltage | 415V AC / 690V AC (customizable) |
| Frequency | 50/60 Hz |
| Rated Current | Up to 4000A |
| Cable Entry | Top, bottom, or side entry options available |
| Busbar System | Copper or Aluminum, rated for high current applications |
| Mechanical Specifications | |
|---|---|
| Enclosure Material | Mild Steel / Stainless Steel |
| Powder Coat: | Epoxy polyester powder coating, RAL color options available |
| Panel Thickness | 2mm - 3mm (depending on size and application) |
| Dimensions | Customizable to customer specifications |
| Mounting Type | Wall-mounted or floor-standing |
| Weight | Depending on configuration (typically 50 kg and above) |
| Ingress Protection (IP) | IP54 / IP65 (depending on model) |
| Type of Construction | Modular construction for easy maintenance and scalability |
| Type of Form Construction | Form 1, Form 2, Form 3, Form 4 (depending on application requirements) |
| Short Circuit Ratings | |
|---|---|
| Busbar System | Copper or Aluminum busbars, short circuit withstand capacity up to 50 kA |
| Switchgears | MCCBs (Molded Case Circuit Breakers), ACBs (Air Circuit Breakers) with short circuit ratings up to 50 kA |
| Control and Operation | |
|---|---|
| Components | MCCBs, MCBs (Miniature Circuit Breakers), RCDs (Residual Current Devices), and Isolators |
| Monitoring | Real-time monitoring of electrical parameters |
| Alarms | Audible and visual alarms for overcurrent and short circuit protection |
| Safety and Compliance | |
|---|---|
| Certifications | CE, UL, IEC 61439-1, IEC 61439-2 |
| Standards | EN 60439-1, EN 60439-3 |
| Additional Features | |
|---|---|
| HMI Interface | LCD display for status and parameter monitoring |
| Remote Monitoring | Connectivity options for remote monitoring and control |
| Customization | Tailored configurations available to meet specific project requirements |
| Modularity | Integrated energy monitoring capabilities |
| Customization | Segregated compartments for power and control sections |
| Accessories and Options | |
|---|---|
| Communication Modules | Modbus, Ethernet/IP for integration with building management systems |
| Environmental Monitoring | Temperature and humidity sensors for environmental control |
For detailed specifications tailored to your project needs or further inquiries, please contact our technical support team or visit our contact page.
Invent Controls Private Limited offers advanced LT CT Meter Panel Boards designed to ensure efficient and reliable power distribution across diverse industrial applications. Explore how our LT CT Meter Panel Boards can benefit your industry:
In manufacturing environments, consistent and reliable power distribution is crucial for maintaining production efficiency. Invent Controls’ LT CT Meter Panel Boards offer:
Commercial facilities require stable power distribution for smooth operations and tenant comfort. Our LT CT Meter Panel Boards provide:
In healthcare facilities, reliable and efficient power distribution is essential to ensure patient care and safety. Our LT CT Meter Panel Boards deliver:
Data centers demand high-quality power distribution to support continuous operation and prevent data loss. Invent Controls’ LT CT Meter Panel Boards offer:
Industrial facilities require efficient management of electrical power for smooth operations. Our LT CT Meter Panel Boards provide:
Telecom networks rely on consistent power distribution to maintain connectivity and service reliability. Our LT CT Meter Panel Boards deliver:
Invent Controls Private Limited is committed to delivering innovative Electrical Distribution Board solutions that enhance power reliability, improve operational efficiency, and ensure safety across various industries. Contact us today to learn more about how our LT CT Meter Panel Boards can support your power distribution needs.
This comprehensive specification ensures that the LT CT Meter Panel Boards provided by Invent Controls Private Limited meet high standards of performance, reliability, and safety.
