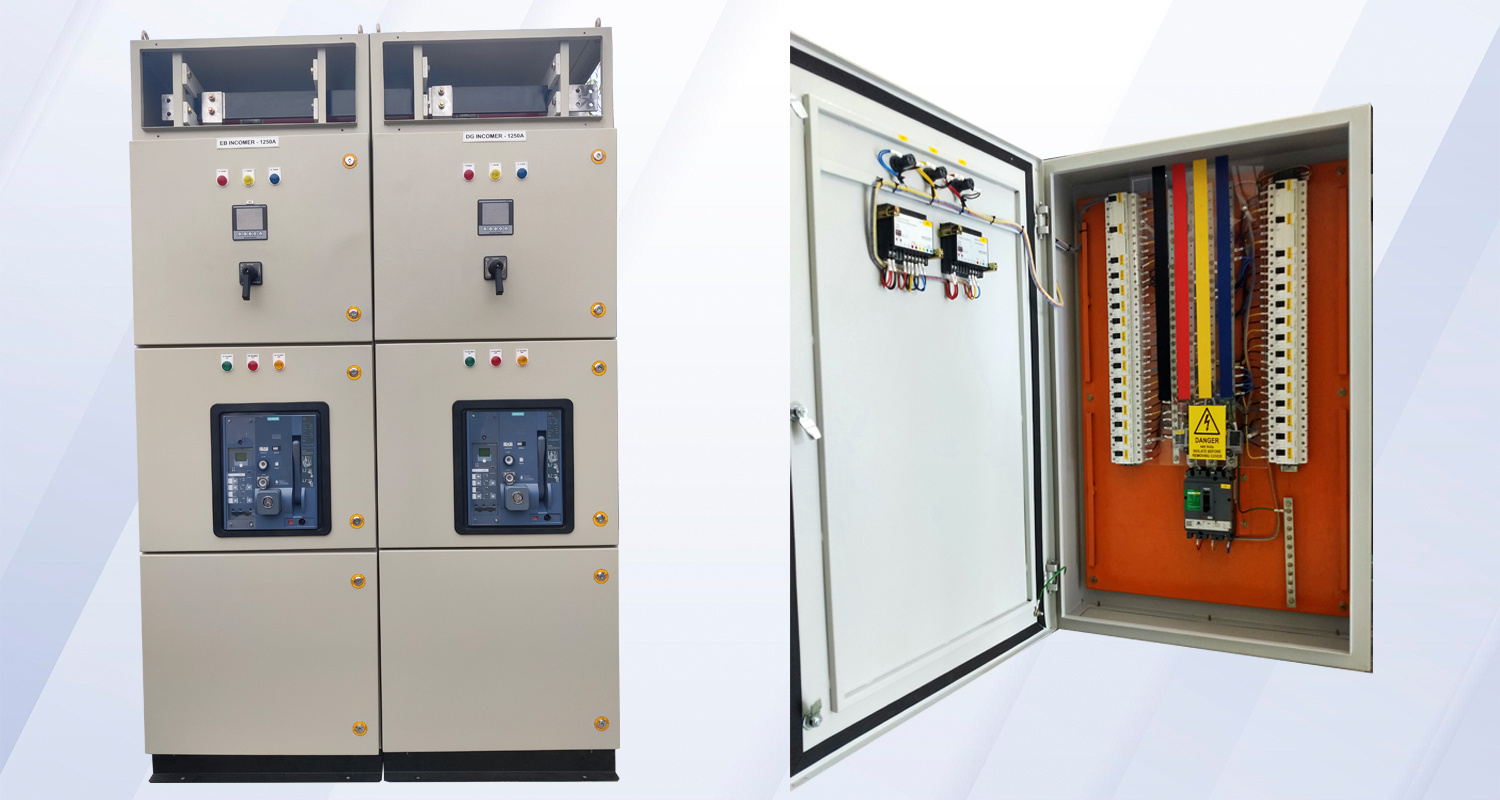

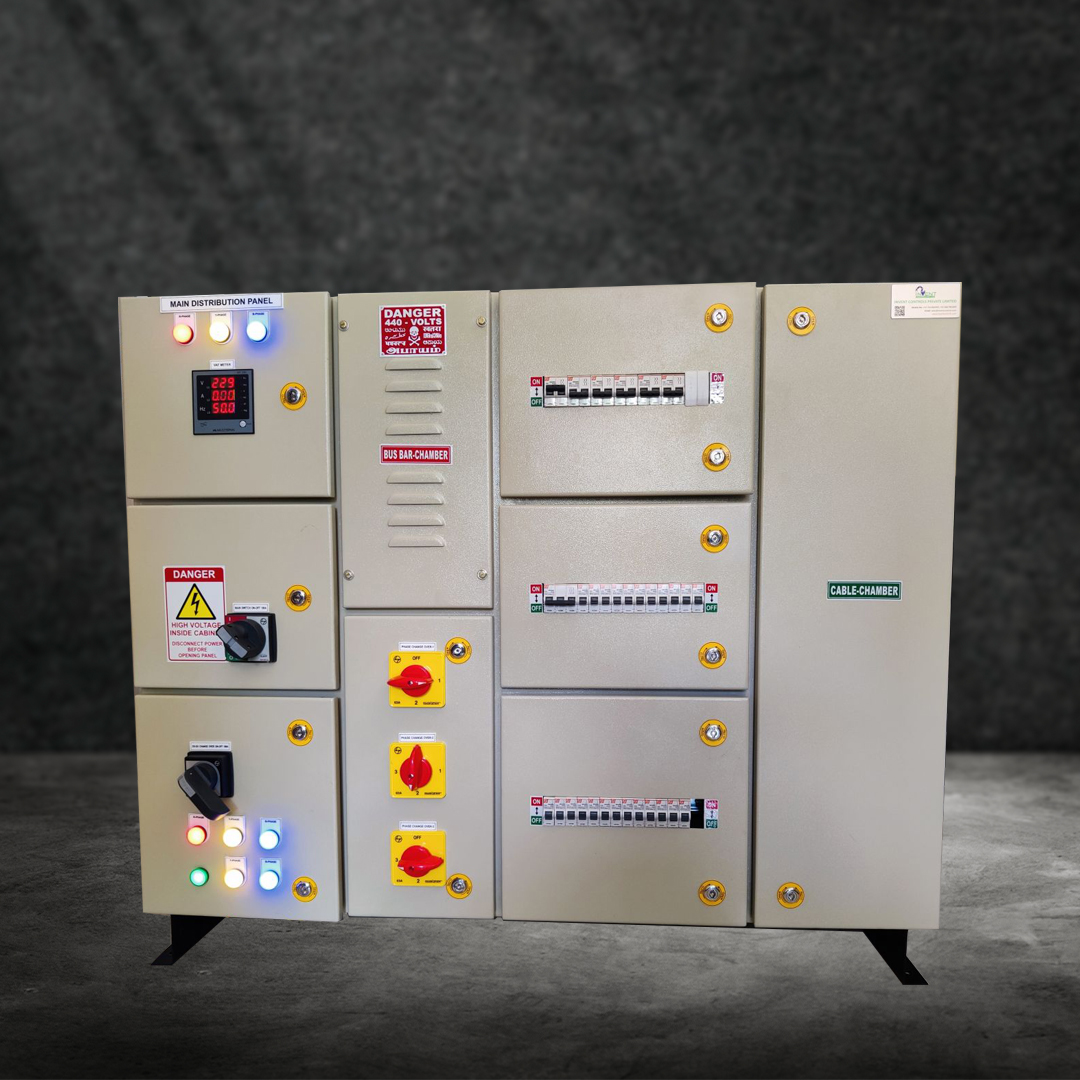

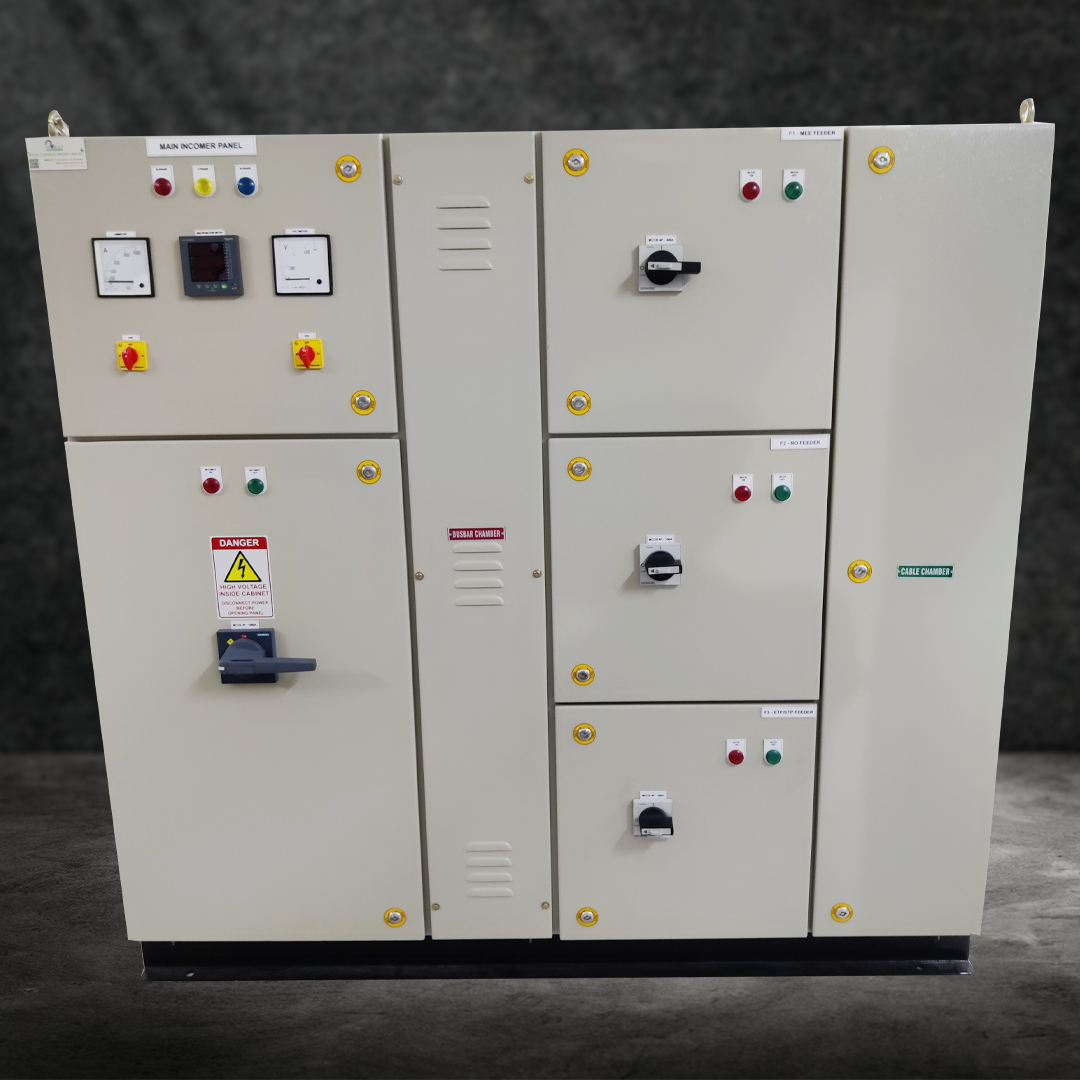

Electrical Distribution Boards, also known as distribution panels or breaker panels, are critical components of electrical systems that distribute electrical power from a main source to various circuits within a building or facility. These panels house circuit breakers or fuses that protect each individual circuit from overloads and short circuits, ensuring the safety and reliability of the electrical system. Electrical Distribution Boards allow for organized and efficient routing of electricity to different areas, enabling easy control and maintenance of electrical infrastructure. They are essential in residential, commercial, and industrial settings, providing a central point for managing electrical distribution and ensuring that power is safely and effectively delivered to all connected devices and systems.
Invent Controls Private Limited offers high-quality Electrical Distribution Boards designed to efficiently manage and distribute electrical power across various industrial, commercial, and residential applications. Our distribution boards are engineered to provide reliable protection and control, ensuring the safe and efficient operation of electrical systems. Each panel is constructed with robust materials and advanced components, capable of handling the demands of modern electrical infrastructure while minimizing the risk of faults and outages.
Our Electrical Distribution Boards are customizable to meet specific client requirements, featuring flexible configurations and user-friendly interfaces for easy installation and maintenance. Equipped with comprehensive safety features such as circuit breakers and surge protection, our panels ensure maximum protection for both equipment and personnel. At Invent Controls, we combine technical expertise with a commitment to quality and innovation, delivering distribution boards that enhance power management, improve energy efficiency, and ensure operational reliability. Choose Invent Controls Private Limited for state-of-the-art Electrical Distribution Boards that meet the highest standards of performance and safety.
Special Features of Invent Controls Private Limited Electrical Distribution Boards
Invent Controls Private Limited presents high-quality Electrical Distribution Boards designed to ensure efficient and safe power distribution across various applications. Here are the key features:
Robust Design: Our electrical distribution boards are built with durable materials and designed to withstand demanding environments. This ensures long-term reliability and performance even under harsh conditions.
High Safety Standards: Safety is a top priority in our design. Our distribution boards include features such as circuit breakers, surge protection, and insulation barriers to protect against electrical faults and ensure the safety of personnel and equipment.
Flexible Configurations: We offer customizable configurations to meet specific client requirements. Whether for residential, commercial, or industrial applications, our distribution boards can be tailored to suit your unique needs.
Easy Installation and Maintenance: Our distribution boards are designed for easy installation and maintenance. Clear labeling and accessible components simplify setup and troubleshooting, reducing downtime and maintenance costs.
Space Optimization: Designed with a compact footprint, our distribution boards optimize space utilization without compromising on performance. This is particularly beneficial for installations where space is at a premium.
Advanced Monitoring and Control: Equipped with advanced monitoring and control systems, our distribution boards provide real-time tracking of electrical parameters, enabling proactive maintenance and efficient energy management.
Energy Efficiency: Our distribution boards are designed to enhance energy efficiency by minimizing power losses and optimizing load distribution. This helps reduce operational costs and supports sustainable energy practices.
Scalability: Our modular design allows for easy scalability, enabling you to expand your electrical distribution system as your needs grow. This future-proofs your investment and ensures long-term flexibility.
Compliance and Certification: Our distribution boards comply with international standards and certifications, ensuring high quality and adherence to safety and performance regulations.
Comprehensive Support Services: We provide comprehensive support services, including design consultation, installation, commissioning, and ongoing technical support. Our team of experts is dedicated to ensuring the optimal performance and reliability of your electrical distribution boards.
For more information on our Electrical Distribution Boards and how they can enhance your power distribution system, please contact us or visit our contact page.
| General Specifications | |
|---|---|
| Manufacturer | Invent Controls Private Limited |
| Model | IC-EDB Series |
| Type | Electrical Distribution Boards |
| Application | Power distribution for industrial, commercial, and residential applications |
| Electrical Specifications | |
|---|---|
| Rated Voltage | 415V AC / 690V AC (customizable) |
| Frequency | 50/60 Hz |
| Rated Current | Up to 4000A |
| Cable Entry | Top, bottom, or side entry options available |
| Busbar System | Copper or Aluminum, rated for high current applications |
| Mechanical Specifications | |
|---|---|
| Enclosure Material | Mild Steel / Stainless Steel |
| Powder Coat: | Epoxy polyester powder coating, RAL color options available |
| Panel Thickness | 2mm - 3mm (depending on size and application) |
| Dimensions | Customizable to customer specifications |
| Mounting Type | Wall-mounted or floor-standing |
| Weight | Depending on configuration (typically 50 kg and above) |
| Ingress Protection (IP) | IP54 / IP65 (depending on model) |
| Type of Construction | Modular construction for easy maintenance and scalability |
| Type of Form Construction | Form 1, Form 2, Form 3, Form 4 (depending on application requirements) |
| Short Circuit Ratings | |
|---|---|
| Busbar System | Copper or Aluminum busbars, short circuit withstand capacity up to 50 kA |
| Switchgears | MCCBs (Molded Case Circuit Breakers), ACBs (Air Circuit Breakers) with short circuit ratings up to 50 kA |
| Control and Operation | |
|---|---|
| Components | MCCBs, MCBs (Miniature Circuit Breakers), RCDs (Residual Current Devices), and Isolators |
| Monitoring | Real-time monitoring of electrical parameters |
| Alarms | Audible and visual alarms for overcurrent and short circuit protection |
| Safety and Compliance | |
|---|---|
| Certifications | CE, UL, IEC 61439-1, IEC 61439-2 |
| Standards | EN 60439-1, EN 60439-3 |
| Additional Features | |
|---|---|
| HMI Interface | LCD display for status and parameter monitoring |
| Remote Monitoring | Connectivity options for remote monitoring and control |
| Customization | Tailored configurations available to meet specific project requirements |
| Modularity | Integrated energy monitoring capabilities |
| Customization | Segregated compartments for power and control sections |
| Accessories and Options | |
|---|---|
| Communication Modules | Modbus, Ethernet/IP for integration with building management systems |
| Environmental Monitoring | Temperature and humidity sensors for environmental control |
For detailed specifications tailored to your project needs or further inquiries, please contact our technical support team or visit our contact page.
Invent Controls Private Limited offers advanced Electrical Distribution Boards designed to ensure efficient and reliable power distribution across diverse industrial applications. Explore how our Electrical Distribution Boards can benefit your industry:
In manufacturing environments, consistent and reliable power distribution is crucial for maintaining production efficiency. Invent Controls’ Electrical Distribution Boards offer:
Commercial facilities require stable power distribution for smooth operations and tenant comfort. Our Electrical Distribution Boards provide:
In healthcare facilities, reliable and efficient power distribution is essential to ensure patient care and safety. Our Electrical Distribution Boards deliver:
Data centers demand high-quality power distribution to support continuous operation and prevent data loss. Invent Controls’ Electrical Distribution Boards offer:
Industrial facilities require efficient management of electrical power for smooth operations. Our Electrical Distribution Boards provide:
Telecom networks rely on consistent power distribution to maintain connectivity and service reliability. Our Electrical Distribution Boards deliver:
Invent Controls Private Limited is committed to delivering innovative Electrical Distribution Board solutions that enhance power reliability, improve operational efficiency, and ensure safety across various industries. Contact us today to learn more about how our Electrical Distribution Boards can support your power distribution needs.
