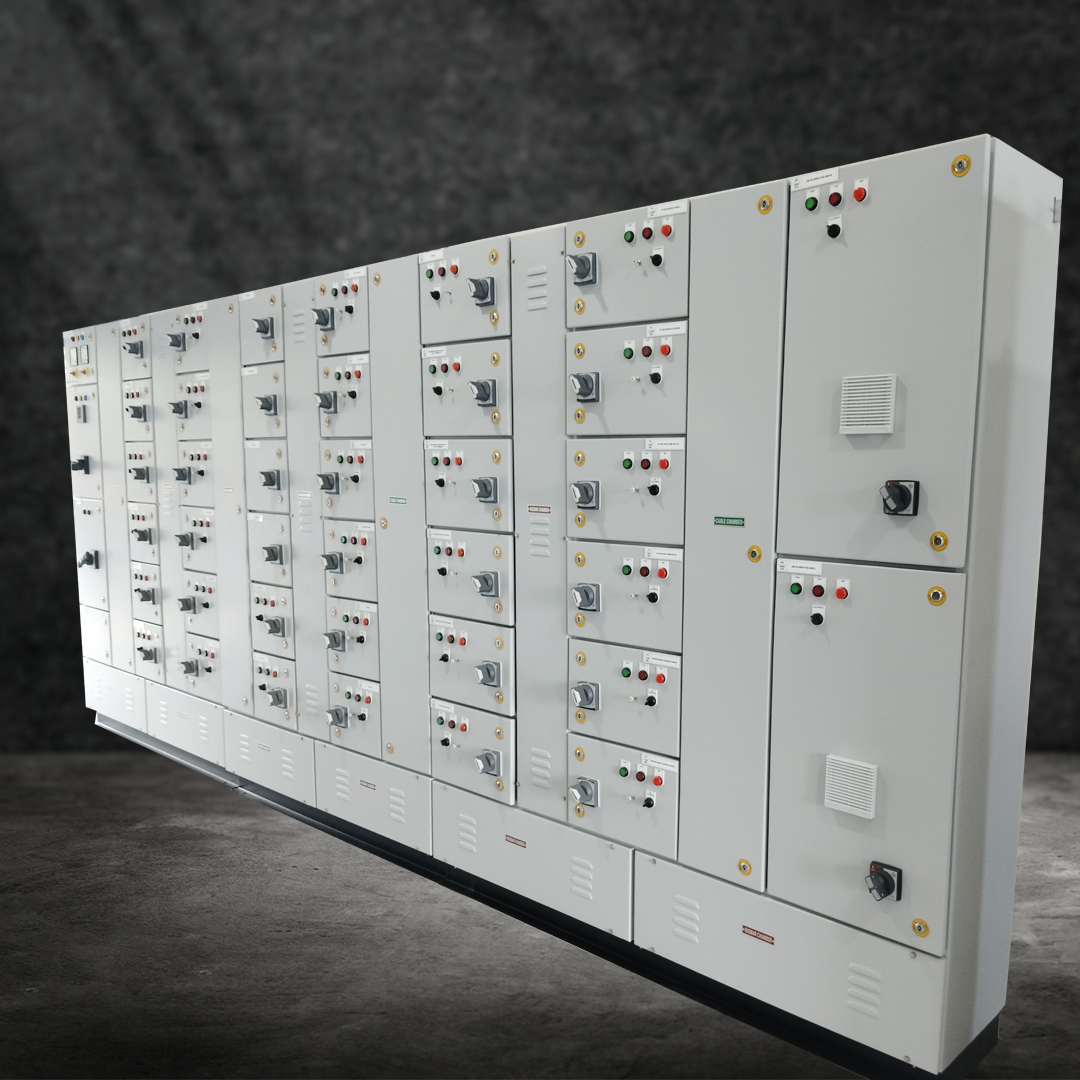

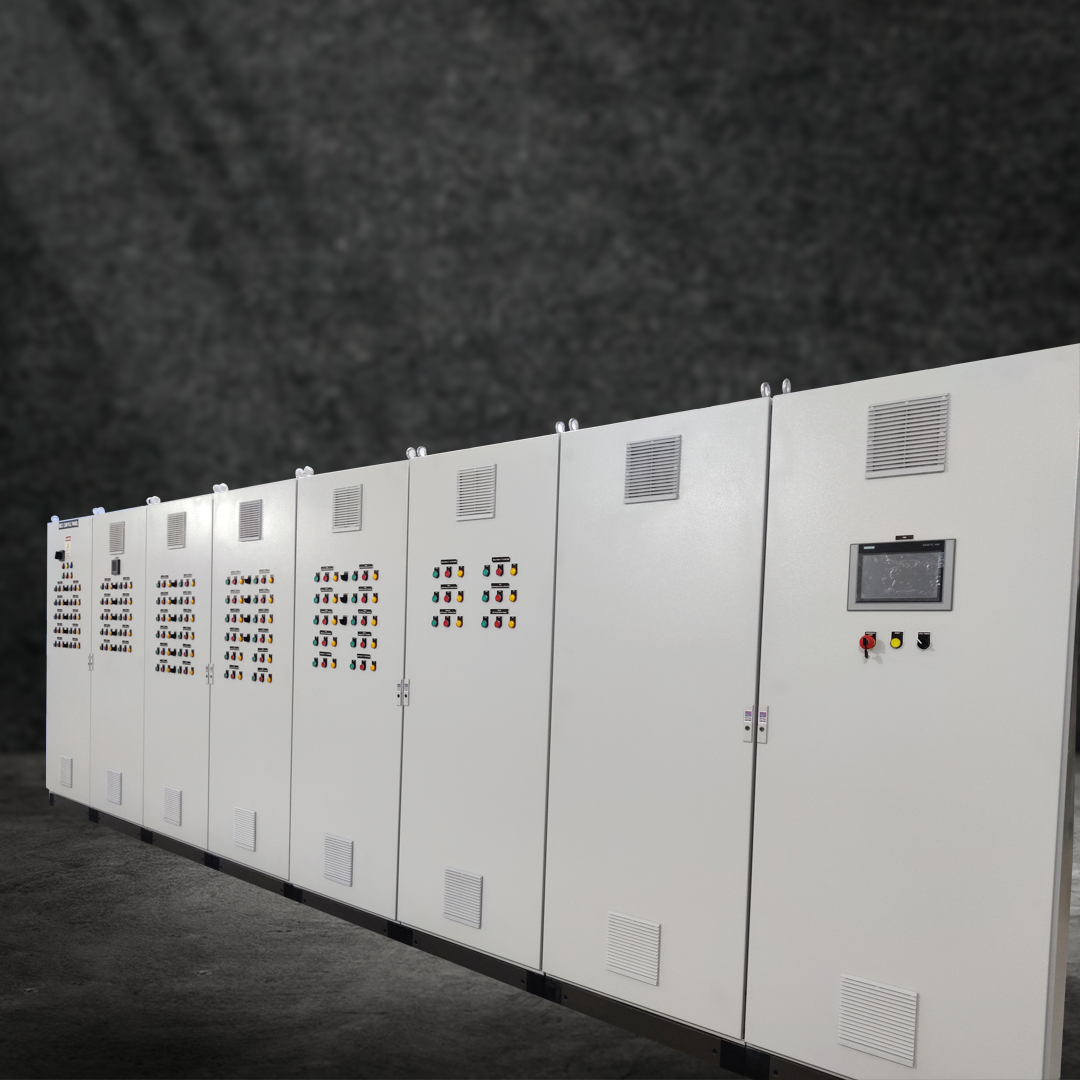

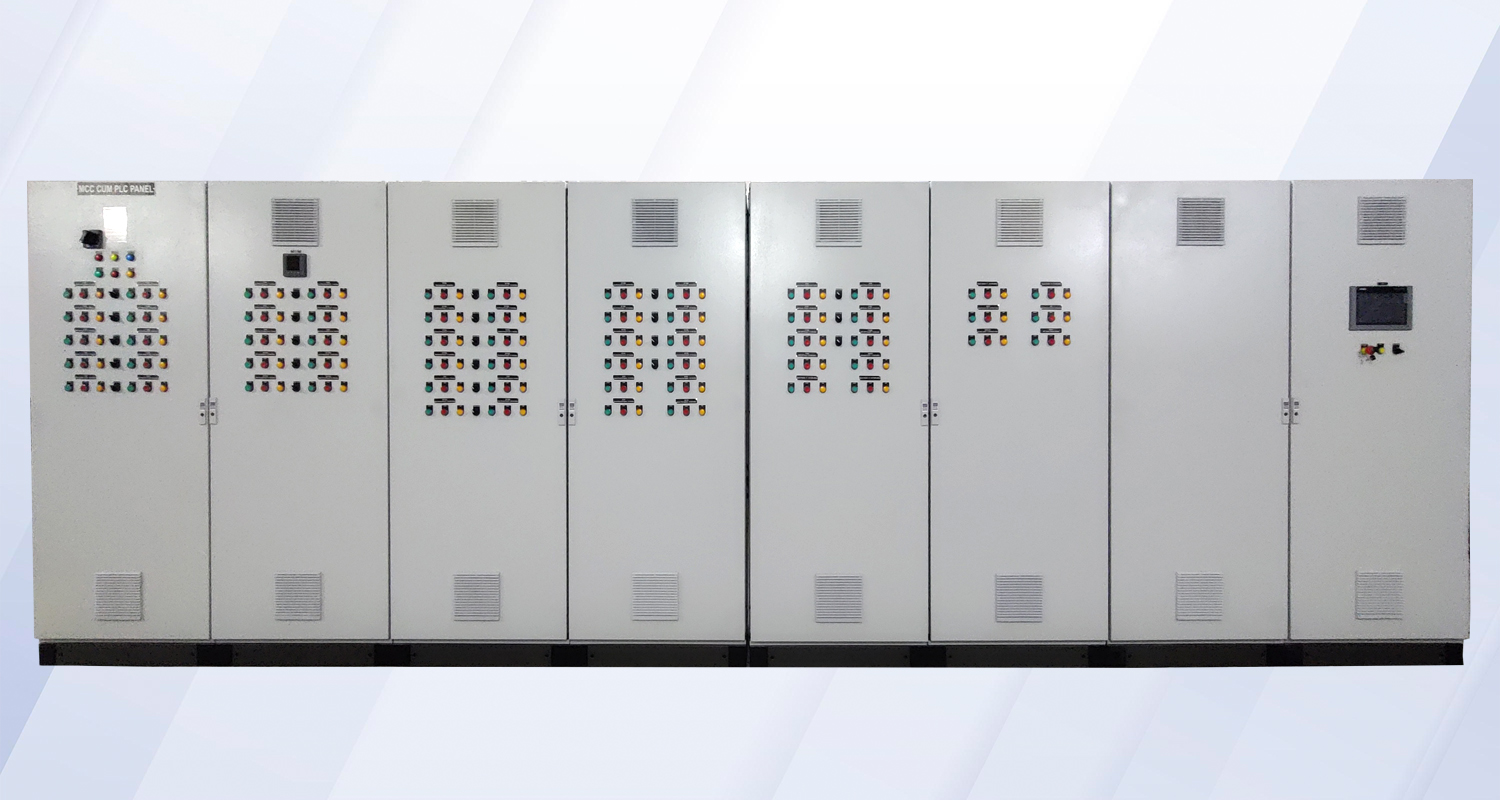

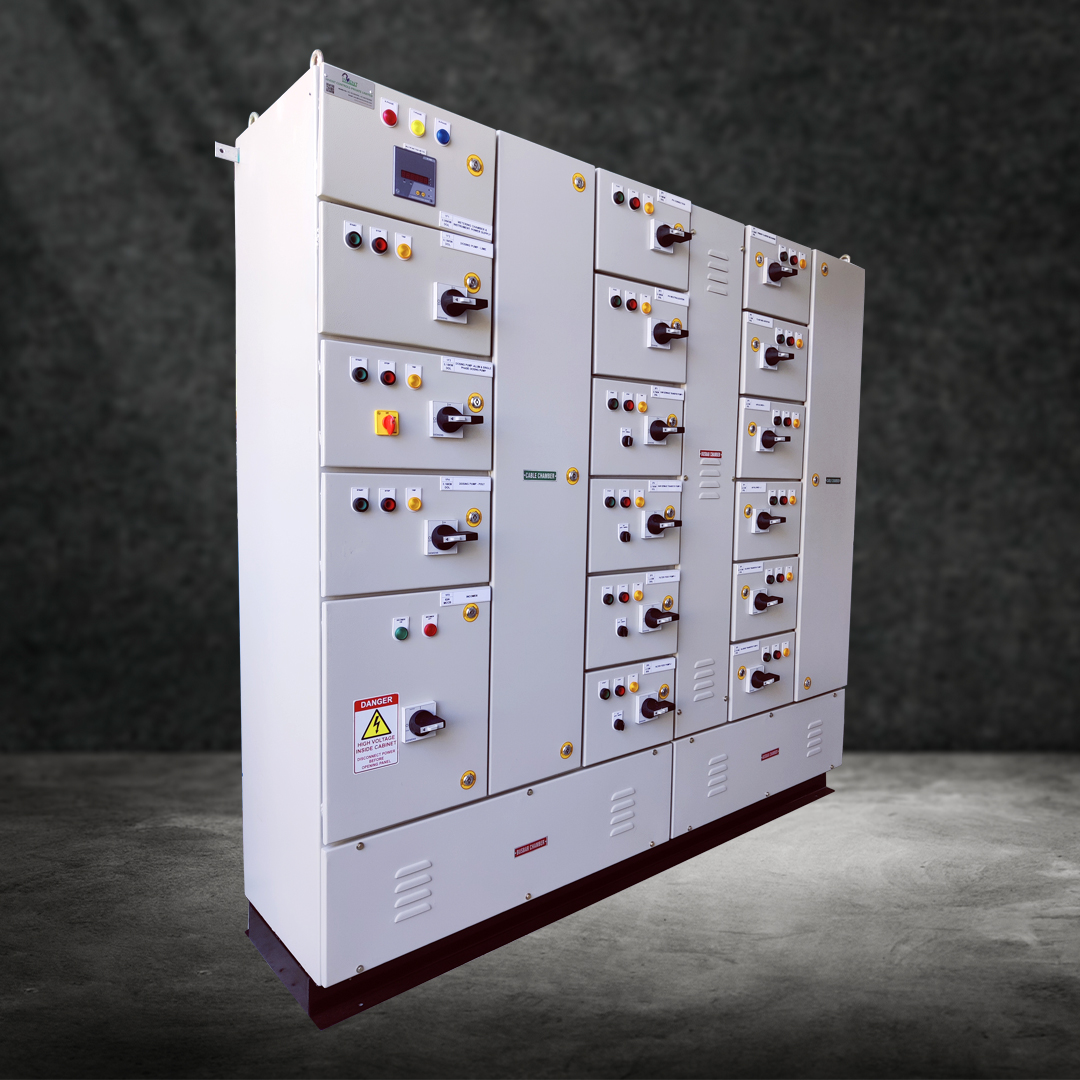

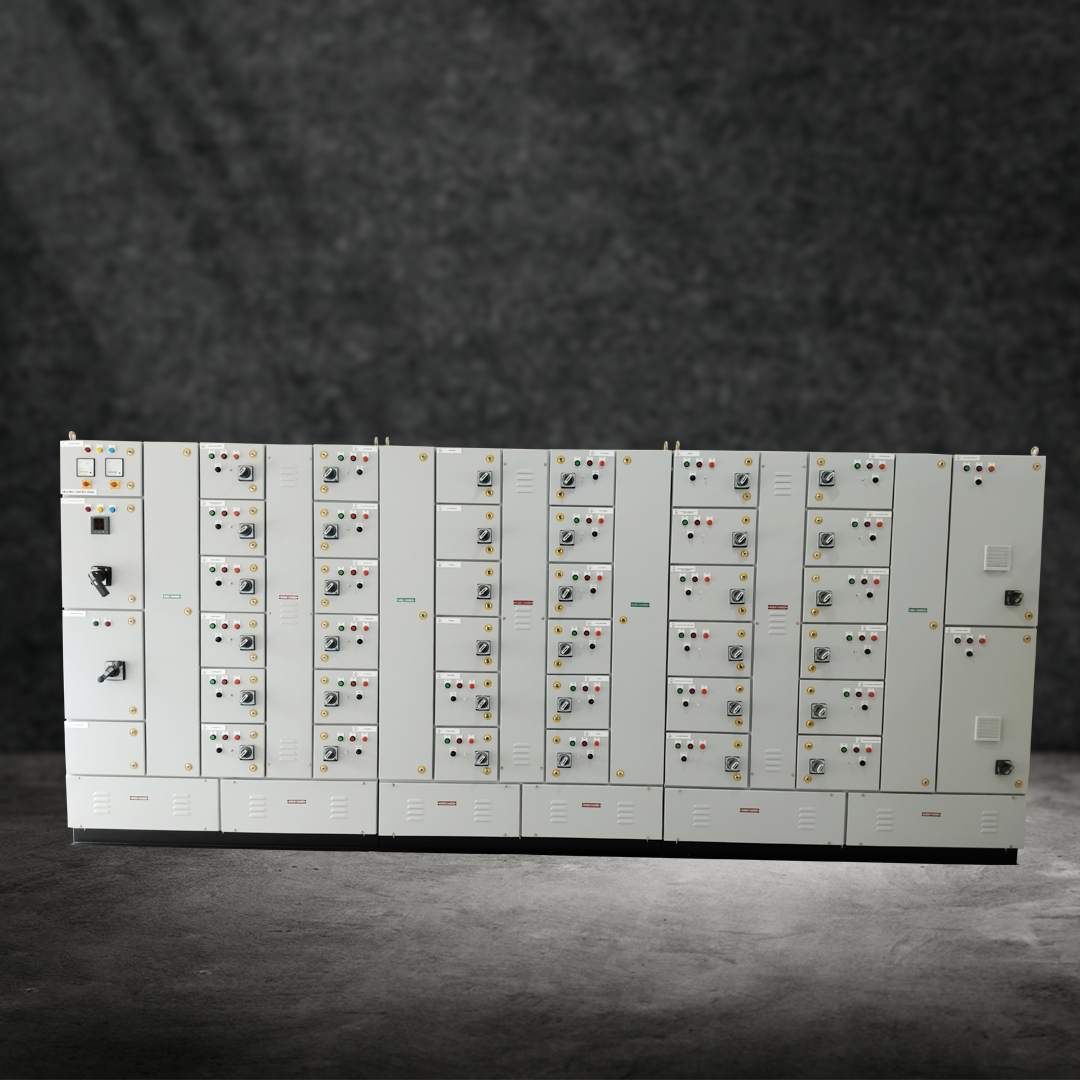

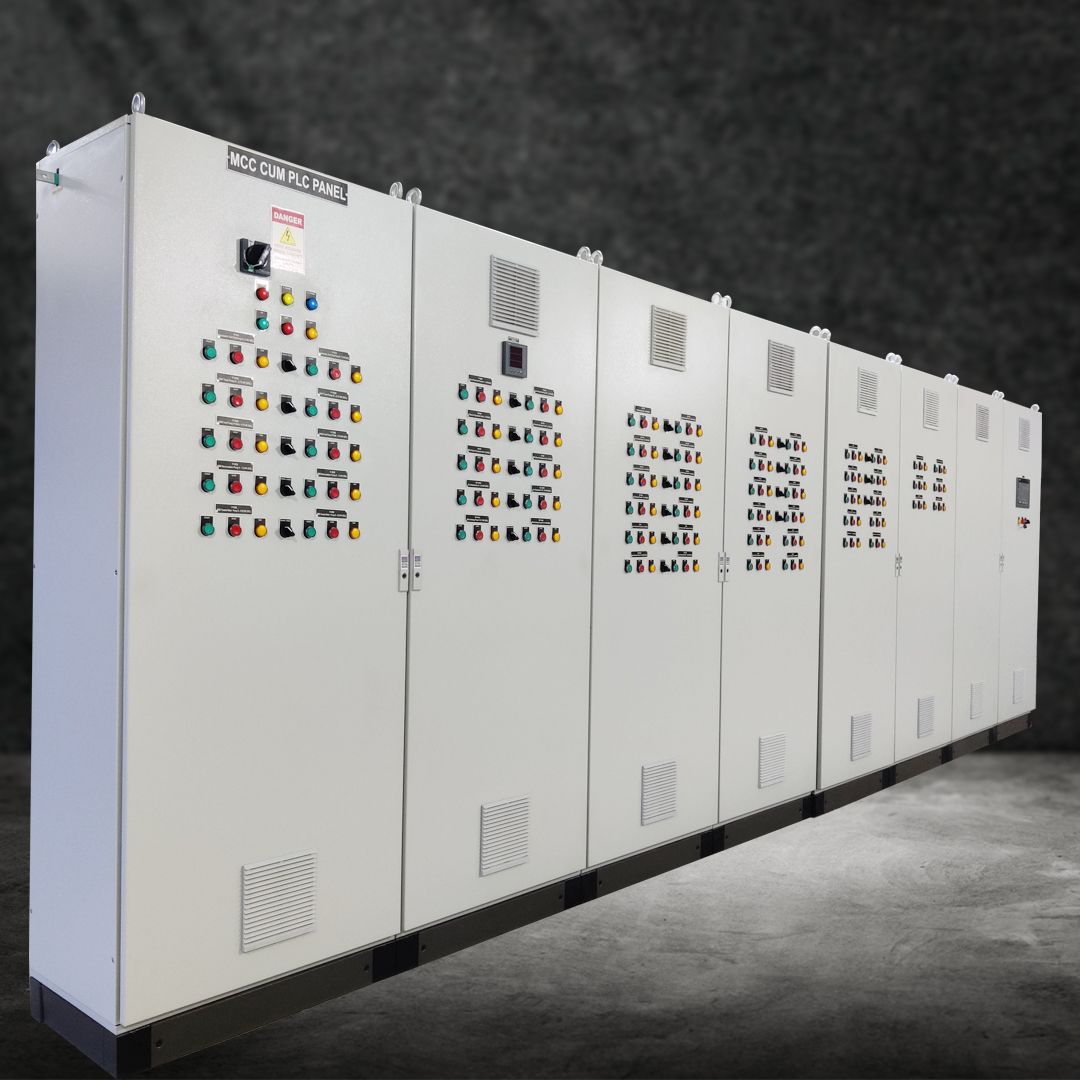

MCC (Motor Control Center) control panels are essential assemblies used to centralize the control of multiple electric motors in industrial settings. These panels consist of several enclosed sections, each housing a motor controller, which can include a combination of motor starters, overload relays, and circuit breakers. MCC control panels facilitate the distribution of power, protection, and control to various motors, enabling efficient management and maintenance. They are widely used in industries such as manufacturing, water treatment, and petrochemicals, where the coordinated operation of multiple motors is critical. MCC control panels enhance safety, improve system reliability, and streamline operations by providing a single, organized point for motor control and protection.
Invent Controls Private Limited specializes in the design and manufacture of MCC (Motor Control Center) panels that provide reliable and efficient motor control solutions for a wide range of industrial applications. Our MCC panels are built to manage and protect motors in complex systems, ensuring optimal performance and longevity. With a focus on quality and durability, our MCC panels are engineered to withstand demanding industrial environments, offering robust protection against overloads, short circuits, and other electrical faults.
Our customizable MCC solutions are tailored to meet the specific needs of diverse industries, including manufacturing, petrochemicals, water treatment, and more. Each panel is equipped with user-friendly interfaces and comprehensive safety features, facilitating easy operation and maintenance while ensuring maximum protection for both equipment and personnel. At Invent Controls, we combine technical expertise with a commitment to innovation, delivering MCC panels that enhance operational efficiency, improve system reliability, and provide seamless integration with existing infrastructure. Choose Invent Controls Private Limited for cutting-edge MCC solutions that drive your industrial operations forward.
Special Features of Invent Controls Private Limited MCC Control Panels
Invent Controls Private Limited offers top-of-the-line MCC Control Panels, designed to provide exceptional performance and reliability in motor control applications. Here are the standout features:
Modular Design: Our MCC panels feature a modular design, allowing for easy expansion and customization. This ensures that you can adapt the system to meet evolving operational needs without significant downtime or reconfiguration.
High Safety Standards: Safety is a priority in our MCC panel design. We incorporate advanced safety features, including arc flash protection, overload relays, and fault indicators to ensure the safety of operators and equipment.
Efficient Space Utilization: Designed to optimize space, our MCC panels offer a compact footprint without compromising on performance. This is ideal for facilities where space is at a premium.
Easy Maintenance: With clearly labeled components and accessible layout, our MCC panels simplify maintenance tasks. This minimizes downtime and ensures that your system remains operational with minimal interruption.
Reliable Performance: Built with high-quality components, our MCC panels ensure reliable performance even in the most demanding industrial environments. This reduces the risk of unexpected failures and enhances overall system reliability.
Energy Efficiency: Our MCC control panels are designed with energy-efficient components, helping to reduce power consumption and operational costs. This aligns with green energy practices and sustainability goals.
Advanced Monitoring and Control: Equipped with state-of-the-art monitoring and control systems, our MCC panels allow for real-time tracking of motor performance and system health. This facilitates proactive maintenance and quick response to any issues.
Custom Configuration: We provide custom configuration options to meet specific client requirements. Whether you need specialized motor controls or unique operational features, we can tailor our MCC panels to suit your needs.
Durable Construction: Our MCC panels are constructed with robust materials to withstand harsh industrial conditions. They offer excellent resistance to environmental factors such as dust, moisture, and temperature variations.
Comprehensive Support: We offer extensive support services, including installation, training, and maintenance. Our team of experts is always available to assist you in maximizing the performance and lifespan of your MCC panels.
| General Specifications | |
|---|---|
| Manufacturer | Invent Controls Private Limited |
| Model | IC-MCC Series |
| Type | Motor Control Center (MCC) Panel |
| Application | Industrial motor control, power distribution |
| Electrical Specifications | |
|---|---|
| Input Voltage | 415V AC / 690V AC (customizable) |
| Frequency | 50/60 Hz |
| Rated Current | Up to 4000A |
| Short Circuit Withstand Capacity | Up to 50 kA |
| Cable Entry | Top, bottom, or side entry options available |
| Mechanical Specifications | |
|---|---|
| Enclosure Material | Mild Steel / Stainless Steel |
| Powder Coat | Epoxy polyester powder coating, RAL color options available |
| Panel Thickness | 2mm - 3mm (depending on size and application) |
| Dimensions | Customizable to customer specifications |
| Weight | Depending on configuration (typically 100 kg and above) |
| Ingress Protection (IP) | IP54 / IP65 (depending on model) |
| Draw-out Type | Available for easy maintenance and module replacement |
| Short Circuit Ratings | |
|---|---|
| Busbar System | Copper or Aluminum busbars, short circuit withstand capacity up to 50 kA |
| Switchgears | MCCBs (Molded Case Circuit Breakers), ACBs (Air Circuit Breakers) with short circuit ratings up to 50 kA |
| Safety and Compliance | |
|---|---|
| Certifications | CE, UL, IEC 61439-1, IEC 61439-2 |
| Standards | EN 60439-1, EN 60439-2 |
| Control and Protection | |
|---|---|
| Components | MCCBs, ACBs, Contactors, Overload Relays |
| Safety Features | Earth fault protection, Overcurrent protection, Short circuit protection |
| Additional Features | |
|---|---|
| HMI Interface | Touchscreen / Keypad for local operation and monitoring |
| Remote Monitoring | Available via Ethernet or SCADA integration |
| Customization | Tailored configurations available to meet specific project requirements |
| Modularity | Integrated energy monitoring capabilities |
| Customization | Segregated compartments for power and control sections |
| Accessories and Options | |
|---|---|
| Power Factor Correction | Integrated capacitors for power factor improvement |
| Communication Modules | Modbus, Profibus, Ethernet/IP for communication with PLCs and SCADA systems |
| Environmental Monitoring | Temperature and humidity sensors for environmental control |
For detailed specifications tailored to your project needs or further inquiries, please contact our technical support team or visit our contact page.
Invent Controls Private Limited offers advanced MCC (Motor Control Center) control panels designed to provide efficient motor control and distribution solutions across diverse industrial applications. Discover how our MCC control panels can benefit your industry:
Efficiency and reliability are crucial in manufacturing environments. Invent Controls’ MCC control panels offer:
In the oil and gas industry, where operations are often in harsh environments, robust and reliable control systems are essential. Our MCC control panels provide:
Water treatment facilities require precise control and monitoring to ensure optimal operation and regulatory compliance. Invent Controls’ MCC control panels offer:
In power generation plants, reliable motor control is critical for maintaining grid stability and operational efficiency. Our MCC control panels deliver:
The pharmaceutical industry demands precise control and compliance with stringent regulations. Invent Controls’ MCC control panels offer:
In food and beverage processing facilities, hygiene, efficiency, and reliability are paramount. Our MCC control panels provide:
Invent Controls Private Limited is committed to delivering innovative MCC control panel solutions that optimize industrial processes, enhance safety, and reduce operational costs across various industries. Contact us today to explore how our MCC control panels can contribute to your business success.
