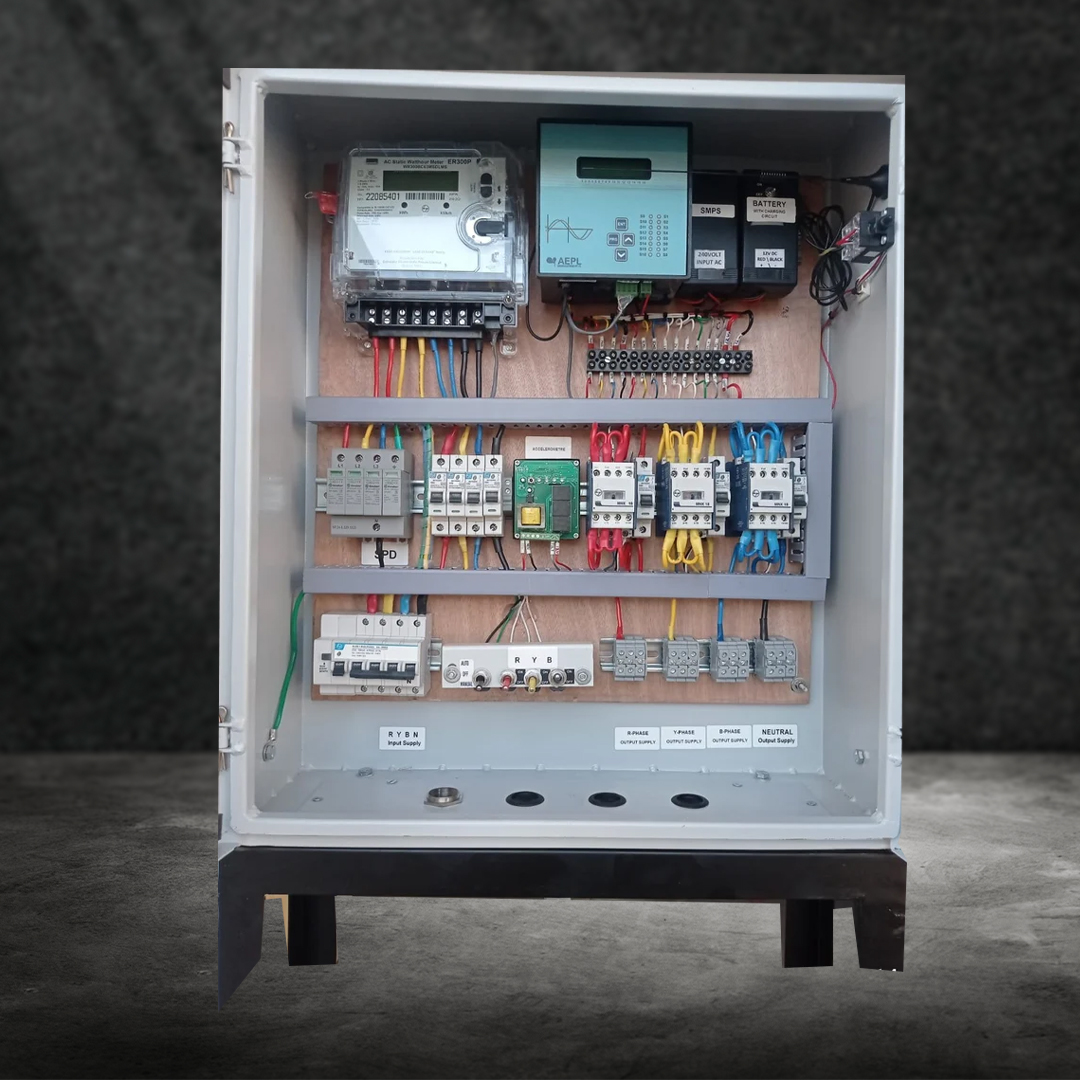

A Street Light Control Panel Board is a specialized electrical panel designed to manage and control street lighting systems efficiently. It typically integrates components such as timers, sensors, and controllers that automate the operation of street lights based on preset schedules or environmental conditions like daylight levels. These panels ensure optimal energy usage by regulating when and how street lights illuminate, thereby enhancing public safety, reducing energy consumption, and minimizing maintenance costs through centralized monitoring and control capabilities.
At Invent Controls Private Limited, our Feeder Pillar Panel Boards are meticulously engineered to ensure reliable power distribution solutions for diverse industrial and commercial applications. Designed with robustness and efficiency in mind, these panels serve as essential components in electrical infrastructure, offering seamless integration and superior performance. Each Feeder Pillar Panel Board is crafted with precision, incorporating advanced features such as high-quality insulation, optimal cable management systems, and compliant electrical specifications to meet industry standards.
These panels are tailored to enhance operational safety and efficiency, equipped with innovative design elements that facilitate ease of installation and maintenance. Whether for urban installations or industrial complexes, our Feeder Pillar Panel Boards are built to withstand harsh environmental conditions while ensuring uninterrupted power supply. Explore our range of customizable options designed to meet specific project requirements, backed by our commitment to quality and reliability at every step. Trust Invent Controls to deliver Feeder Pillar Panel Boards that exceed expectations, empowering your infrastructure with seamless electrical distribution solutions.
Here are some key special features for the Street Light Control Panel Boards by Invent Controls Private Limited:
Automatic Lighting Control: Advanced scheduling and light sensors ensure optimal operation, adjusting brightness based on ambient light levels.
Energy Efficiency: Integrated power management algorithms maximize energy savings by dimming or turning off lights during off-peak hours or low-traffic periods.
Remote Monitoring and Control: Real-time monitoring allows for immediate response to faults or maintenance needs, improving overall reliability and uptime.
Weatherproof Design: Robust, weather-resistant construction ensures durability in outdoor environments, protecting against dust, moisture, and extreme temperatures.
Centralized Management: Supports centralized control of multiple street light networks, providing flexibility and ease of management from a single location.
Fault Detection and Reporting: Instant notification of faults or malfunctions enables proactive maintenance, reducing downtime and operational disruptions.
Customizable Programming: Flexible programming options cater to specific municipal requirements, including holiday schedules, special events, and seasonal adjustments.
Data Logging and Analysis: Comprehensive data logging capabilities offer insights into energy consumption patterns, facilitating informed decision-making for future enhancements.
Integration Capabilities: Compatible with smart city infrastructure, integrating seamlessly with IoT platforms and municipal management systems for cohesive urban planning.
Compliance and Safety: Designed to meet international safety standards and regulatory requirements, ensuring reliable performance and public safety.
These features highlight how Invent Controls' Street Light Control Panel Boards contribute to efficient, sustainable urban lighting management.
Feeder Street Light Panel Boards are designed specifically for controlling and distributing power to street lighting systems. These panels ensure efficient operation and management of street lights in urban and rural environments.
| Electrical Specifications | |
|---|---|
| Rated Voltage | Up to 415V AC, 50/60 Hz |
| Rated Current | Up to 400A |
| Short Circuit Rating | 25kA for 1 second |
| Busbar Material | Electrolytic grade copper/aluminum |
| Busbar Configuration | Single-phase or three-phase as per application |
| Insulation Level | 1000V AC |
| Cable Entry | Top/bottom entry as per customer requirements |
| Internal Wiring | PVC insulated copper cables |
| Protection Class | IP55 (Outdoor), IP65 (Indoor) |
| Mechanical Specifications | |
|---|---|
| Enclosure Material | CRCA (Cold Rolled Close Annealed) sheet steel |
| Panel Thickness | Doors: 2.0 mm Side Panels: 1.6 mm Base: 3.0 mm |
| Finish | Powder-coated with epoxy polyester |
| Color | RAL 7035 (or as specified by the customer) |
| Mounting | Wall or pole mounted with suitable brackets |
| Dimensions | Customizable as per requirement |
| Components | |
|---|---|
| Circuit Breakers | MCCBs (Molded Case Circuit Breakers) / ACBs (Air Circuit Breakers) |
| Fuse Units | HRC (High Rupturing Capacity) fuse units |
| Switches | Isolators and changeover switches |
| Indicators | LED type phase indication lamps |
| Meters | Digital multifunction meters for voltage, current, power, and energy |
| Surge Protection Devices | SPD for transient voltage protection |
| Terminals | Heavy-duty terminal blocks |
| Environmental Conditions | |
|---|---|
| Ambient Temperature | -5°C to +50°C |
| Relative Humidity | Up to 95% non-condensing |
| Installation Altitude | Up to 2000 meters above sea level without deratingg |
| Standards and Compliance | |
|---|---|
| Design and Construction | IEC 61439-1 & 2 |
| Degree of Protection | IEC 60529 |
| Short Circuit Rating | IEC 60947-2 |
| Type Tests | Temperature rise, short circuit withstand, dielectric strength, and degree of protection tests |
| Safety Features | |
|---|---|
| Interlocks | Mechanical and electrical interlocks to prevent unauthorized access |
| Earthing | Proper earthing for safety and protection against electrical faults |
| Lockable Doors | Provision for padlocking to ensure security |
| Gland Plates | Removable gland plates for easy cable termination |
| Labelling & Warning Labels | |
|---|---|
| Engraving Name Plates | Durable, engraved nameplates for clear component identification and panel labeling. |
| Warning Labels | Prominently displayed warning labels for high voltage, arc flash hazards, and operational cautions as per relevant safety standards. |
| Additional Features | |
|---|---|
| Anti-condensation Heaters | To prevent moisture accumulation |
| Ventilation | Louvers with filters for proper air circulation |
| Cable Management | Cable trays and cleats for organized cable routing |
| Documentation | Comprehensive user manual with wiring diagrams and installation instructions |
| Customization Options | |
|---|---|
| Enclosure Material | Stainless steel for corrosive environments |
| Finish | Custom colors and finishes |
| Components | Specific brands and types of electrical components as per customer preference |
| Control Options | Integration with SCADA systems for remote monitoring and control |
These specifications ensure that the Feeder Street Light Panel Boards by Invent Controls are durable, efficient, and suitable for managing street lighting systems effectively, meeting both operational and safety requirements.
Street Light Control Panel Boards from Invent Controls are designed to meet the diverse needs of urban, commercial, and residential environments. They integrate advanced technologies to ensure efficient operation, reduced energy consumption, and enhanced reliability for street lighting systems.
