SIMATIC HMI Basic Panels
With their sophisticated HMI basic functions, SIMATIC HMI Basic Panels 2nd generation are the ideal entry-level series for simple HMI applications. The device series offers panels with 4", 7", 9" and 12" displays, and combined key or touch operation The innovative widescreen displays are high resolution with 64,000 colors. They can be installed in portrait mode and are especially energy-efficient
Advanced benefits for basic application
• Ideal entry-level range for simple HMI applications
• Engineered in the TIA Portal
• Mounting compatibility with SIMATIC HMI Comfort Panels
and existing SIMATIC HMI Basic Panels 4“ and 6“
• Flexible scalability within the HMI range
• High-resolution, dimmable wide-screen displays with 64.000 colors
• Innovative user interface and improved usability
thanks to new controls and graphics
• Touch / key functionality for intuitive operation
• Interface for connection with various PLCs
• Versions for PROFIBUS or PROFINET
• Archiving via USB stick
Improved Process Quality
Visualization allows for considerably increased process quality with compact plants or smaller applications. Featuring all important HMI basic functions, SIMATIC HMI Basic Panels 2nd Generation thus open up completely new possibilities in terms of operation and monitoring also in the field of mechanical engineering at a particularly attractive price.
Like all other devices in our product range, Basic Panels 2nd Generation offer proven SIMATIC quality and, regardless of display size, numerous software functions as standard – for example, alarm logging, recipe management, trend functions and language switching.

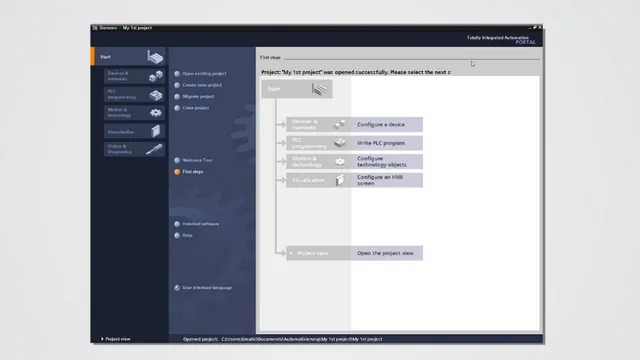

Scalable Software for easy configuration
SIMATIC HMI Basic Panels 2nd Generation can be configured via SIMATIC WinCC (TIA Portal) in the cost-efficient Basic Edition which already offers the outstanding usability and unprecedented engineering efficiency of the Engineering Framework. The user can easily create visualization applications within short time.
As the software is scalable, he can start with a small solution and further expand it any time as required – for example by increasing the number of tags or change to panels of another performance range.

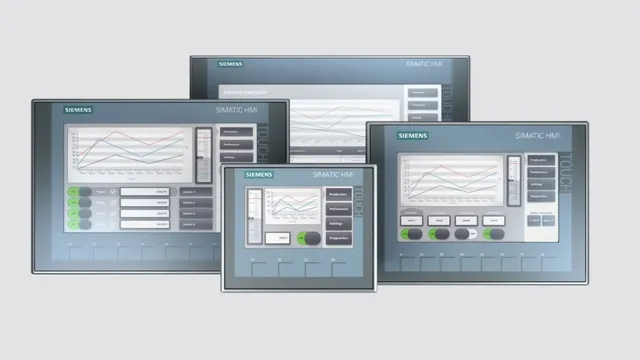

High resolution wide-screen displays
SIMATIC HMI Basic Panels 2nd Generation are available with high-resolution wide-screen displays from 4“ to 12“. These also support configurations with portrait orientation.
Their high resolution and color depth of 64,000 colors facilitate improved process visualization. The displays’ brightness is dimmable up to 100 %, offering optimum flexibility.
The innovative user interface provides a great variety in terms of experiencing and operation. SIMATIC HMI Basic Panels feature user-friendly touch screens and particularly handy, freely configurable keys.
Improved usability

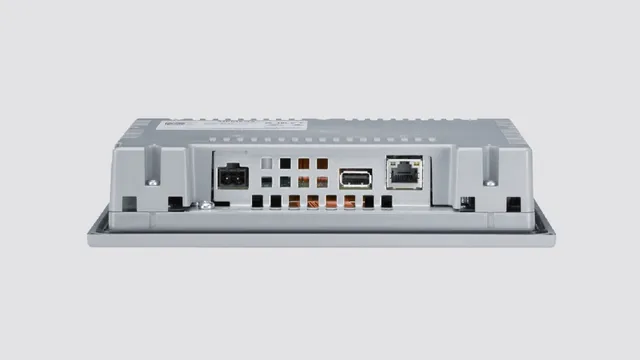

The USB interface facilitates the connection of keyboard, mouse or barcode scanner and supports easy data archiving on a USB stick.
Thanks to a PROFIBUS or PROFINET interface, SIMATIC HMI Basic Panels 2nd Generation allow for connection with various PLCs. The visualization of applications of the Basic Controller SIMATIC S7-1200 offers particularly great added value.
Comfort Panels

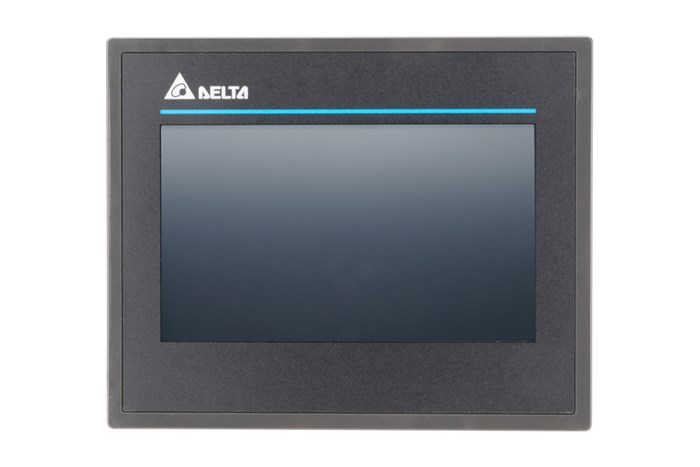

Delta HMI Products
Delta HMIs are designed to provide intuitive and efficient control interfaces for various industrial applications. These HMIs combine advanced technology with robust design to offer unparalleled functionality and ease of use.
Advanced Series (W & M Type)
W Type
Description: The W Type HMIs are designed for high-end applications, offering powerful features and advanced connectivity options.
Features:
Wide Display Options: Available in various sizes, offering high-resolution displays for clear and detailed visuals.
High-Performance Processor: Equipped with a powerful processor for fast and efficient data processing.
Multi-Touch Capability: Supports multi-touch functionality for intuitive and flexible user interaction.
Extensive Connectivity: Includes Ethernet, USB, RS232, RS485, and CANbus for comprehensive connectivity.
Advanced Graphics: Capable of displaying complex graphics, animations, and multi-layer screens.
Robust Design: Designed for industrial environments with high durability and reliability.
Benefits: Ideal for complex and demanding applications requiring advanced features and high performance.
M Type
Description: The M Type HMIs are built for medium to high-end applications, offering a balance of performance and functionality.
Features:
High-Resolution Display: Provides a clear and bright display for enhanced visual experience.
Efficient Processor: Ensures fast and reliable performance for various automation tasks.
Versatile Connectivity: Supports Ethernet, USB, and multiple serial communication ports.
Flexible Programming: Allows for easy programming and customization to meet specific application needs.
Built-In Data Logging: Capable of logging data for monitoring and analysis.
User-Friendly Interface: Features an intuitive interface for easy operation and navigation.
Benefits: Suitable for a wide range of applications, offering reliable performance and extensive features.
Standard Series (C, P, E, I Type)
C Type
Description: The C Type HMIs are designed for standard applications, providing essential features with reliable performance.
Features:
Standard Display: Offers a clear and bright display for effective operation.
Reliable Processor: Ensures stable and efficient performance.
Basic Connectivity: Includes essential communication ports like Ethernet, USB, and serial interfaces.
User-Friendly Interface: Simple and intuitive interface for easy operation.
Cost-Effective: Provides essential features at an affordable price.
Benefits: Ideal for standard automation tasks requiring reliable and cost-effective HMI solutions.
P Type
Description: The P Type HMIs are versatile and robust, suitable for a variety of industrial applications.
Features:
High-Quality Display: Offers a bright and clear display with excellent visibility.
Efficient Performance: Equipped with a reliable processor for smooth operation.
Multiple Connectivity Options: Supports Ethernet, USB, and serial ports for versatile connectivity.
Flexible Programming: Easy to program and customize for different applications.
Durable Design: Built to withstand harsh industrial environments.
Benefits: Versatile and robust, providing reliable performance across various applications.
E Type
Description: The E Type HMIs are designed for efficiency and reliability, ideal for various industrial settings.
Features:
Clear Display: Provides a clear and sharp display for effective monitoring and control.
Reliable Processing: Ensures stable and efficient operation with a robust processor.
Essential Connectivity: Includes Ethernet, USB, and serial communication ports.
User-Friendly Interface: Simple and intuitive interface for easy use.
Cost-Effective: Balances performance and cost for economical solutions.
Benefits: Suitable for efficient and reliable automation tasks, offering essential features at a competitive price.
I Type
Description: The I Type HMIs are industrial-grade, designed for reliable performance in demanding environments.
Features:
Industrial Display: Provides a high-quality display for clear and effective monitoring.
High-Performance Processor: Ensures fast and reliable operation.
Comprehensive Connectivity: Supports Ethernet, USB, and multiple serial ports.
Flexible Programming: Allows for easy customization and programming.
Rugged Design: Built to withstand tough industrial conditions.
Benefits: Ideal for industrial applications requiring durable and reliable HMI solutions.
Basic Series (S, B, D Type)
S Type
Description: The S Type HMIs are designed for basic applications, offering essential features at an economical price.
Features:
Basic Display: Provides a clear and functional display for basic operations.
Simple Processing: Equipped with a basic processor for standard performance.
Essential Connectivity: Includes basic communication ports like USB and serial interfaces.
User-Friendly Interface: Easy-to-use interface for simple operation.
Affordable: Cost-effective solution for basic HMI needs.
Benefits: Perfect for basic automation tasks requiring simple and economical HMI solutions.
B Type
Description: The B Type HMIs offer a balance of functionality and affordability for various applications.
Features:
Clear Display: Provides a clear and bright display for effective operation.
Reliable Processor: Ensures stable and efficient performance.
Basic Connectivity: Includes essential communication ports like USB and serial interfaces.
User-Friendly Interface: Simple and intuitive interface for easy use.
Cost-Effective: Provides essential features at an affordable price.
Benefits: Ideal for standard automation tasks requiring reliable and cost-effective HMI solutions.
D Type
Description: The D Type HMIs are designed for basic to standard applications, offering reliable performance and essential features.
Features:
Standard Display: Offers a clear and bright display for effective operation.
Reliable Processor: Ensures stable and efficient performance.
Basic Connectivity: Includes essential communication ports like USB and serial interfaces.
User-Friendly Interface: Simple and intuitive interface for easy use.
Affordable: Provides essential features at an economical price.
Benefits: Suitable for basic to standard automation tasks requiring reliable and affordable HMI solutions.
Selec
SP112-GT70 HMI
Overview: The Selec SP112-GT70 is a versatile and reliable HMI designed for various industrial applications. With its robust build and user-friendly interface, it ensures seamless operation and enhanced productivity.
Key Features:
Screen Size: 7-inch TFT LCD
Resolution: 800 x 480 pixels
Touch Screen: Resistive touch
Display Colors: 65536 colors
Communication Ports: 2 x RS232/RS485, 1 x Ethernet
Memory: 128 MB flash, 64 MB RAM
Power Supply: 24V DC
Operating Temperature: -10°C to 60°C
Protection Rating: IP65 (front panel)
Benefits:
High-resolution display for clear and precise visuals
Multi-port communication for versatile connectivity
Durable and robust design suitable for harsh industrial environments
Easy-to-use interface for quick and efficient operation
SP112-GT40 HMI
Overview: The Selec SP112-GT40 is an excellent choice for applications requiring a compact and efficient HMI solution. It offers essential features to meet the demands of modern industrial processes.
Key Features:
Screen Size: 4.3-inch TFT LCD
Resolution: 480 x 272 pixels
Touch Screen: Resistive touch
Display Colors: 65536 colors
Communication Ports: 1 x RS232/RS485, 1 x USB Host, 1 x USB Device
Memory: 64 MB flash, 32 MB RAM
Power Supply: 24V DC
Operating Temperature: -10°C to 60°C
Protection Rating: IP65 (front panel)
Benefits:
Compact size suitable for space-constrained applications
High-quality display with vibrant color output
Multiple communication options for flexible integration
User-friendly interface for streamlined operation
SP112-GT100 HMI
Overview: The Selec SP112-GT100 is a high-performance HMI that offers advanced features for complex industrial applications. It is designed to provide superior control and monitoring capabilities.
Key Features:
Screen Size: 10.1-inch TFT LCD
Resolution: 1024 x 600 pixels
Touch Screen: Resistive touch
Display Colors: 65536 colors
Communication Ports: 2 x RS232/RS485, 1 x Ethernet, 1 x USB Host, 1 x USB Device
Memory: 256 MB flash, 128 MB RAM
Power Supply: 24V DC
Operating Temperature: -10°C to 60°C
Protection Rating: IP65 (front panel)
Benefits:
Large, high-resolution display for detailed monitoring
Enhanced memory capacity for storing extensive data and programs
Extensive connectivity options for versatile system integration
Sturdy construction for long-lasting performance in industrial settings
...
